Manufacturer

Texaa

Texaa

Texaa is a privately owned French company with about 50 employees, based in Gradignan near Bordeaux. Since 1978 it has designed, manufactured and distributed acoustic solutions together with architects. Every product is covered with Aeria, Texaa's own sound-transparent knitted fabric, protected by an international patent and knitted in its workshop near Bordeaux in 30 colors. The range covers Stereo panels, Stereo Air open mesh panels, Strato ceilings, Vibrasto stretched cladding, Velio curtains, drapes and blinds, Kora screens and the Abso objects: cushions, pads, totems, cubes and cones. Texaa has offices in Frankfurt am Main and London, a sales contact for the USA, and exports worldwide.

All products by this manufacturerManufacturer website

Documents

Brochure (EN)Installation instructionsColour chart Aeria (EN)Technical datasheet (EN)

Texaa Abso totem

Freestanding

Description

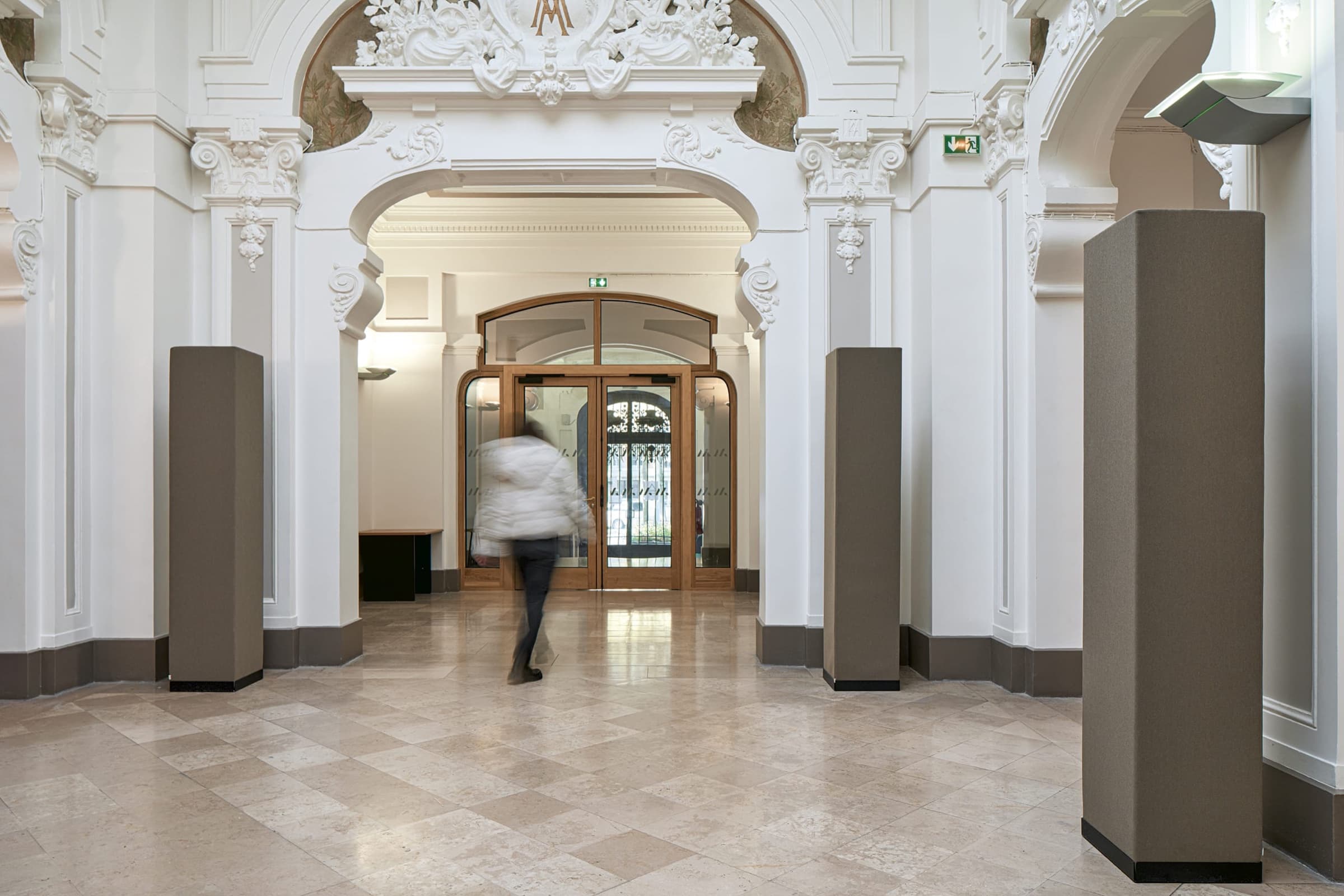

The Abso totem is a free-standing column of gray cellular foam in an Aeria knit cover, set into a shallow steel base tray. It is light, needs no installation and can easily be moved whenever a layout changes. Totems help organize open spaces and partition off quiet zones, and are particularly useful in large halls, corridors and meeting rooms. Standing in the room, they also act as visual markers that signpost quieter areas. A version hung from the ceiling on a steel hoop is listed under Abso ceiling-hung objects.

Technical data

Material: Gray AP cellular foam; steel base tray
Surface: Aeria round knit (MR), 330 g/m², sound-transparent, run-resistant; cover fire class B-s1,d0
Flame spread class (ASTM E84): Class A
Certifications: Indoor air A+ (ISO 16000), AgBB compliant; recycled content ≥ 17%
Colours: 30 colors of the Abso round knit (MR) palette; special colors on request

Measurement data

Sound absorption

Reverberation chamber (ASTM C423 / ISO 354)

Sabins/unit
35
at 1 kHz

Frequency values

Sabins per unit per ISO 354 · third-octave band

f (Hz)100125160200250315
Sabins121617293030

Create a permanent free account. Access frequency bands, variants and export.

Free. No password required.

SizeValue
79 × 15 × 15 inSabins/unit35

Test report: PV 940

Institute: Texaa, Gradignan (FR)

Room volume: 7,119 cu ft

Terms of use
Measured values as a table (1 measurement)
Texaa Abso totem: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-upNRC100 Hz125 Hz160 Hz200 Hz250 Hz315 Hz400 Hz500 Hz630 Hz800 Hz1000 Hz1250 Hz1600 Hz2000 Hz2500 Hz3150 Hz4000 Hz5000 Hz
79 × 15 × 15 in · free-standing (sabins/unit)–121617293030353435353534353231323332
Measured values as a table (1 measurement)

Access frequency bands, variants and export. Create a permanent free account

Last updated:

Calculate reverberation time with this product
