Manufacturer
Texaa
Texaa is a privately owned French company with about 50 employees, based in Gradignan near Bordeaux. Since 1978 it has designed, manufactured and distributed acoustic solutions together with architects. Every product is covered with Aeria, Texaa's own sound-transparent knitted fabric, protected by an international patent and knitted in its workshop near Bordeaux in 30 colors. The range covers Stereo panels, Stereo Air open mesh panels, Strato ceilings, Vibrasto stretched cladding, Velio curtains, drapes and blinds, Kora screens and the Abso objects: cushions, pads, totems, cubes and cones. Texaa has offices in Frankfurt am Main and London, a sales contact for the USA, and exports worldwide.
Texaa Abso ceiling pads
Description

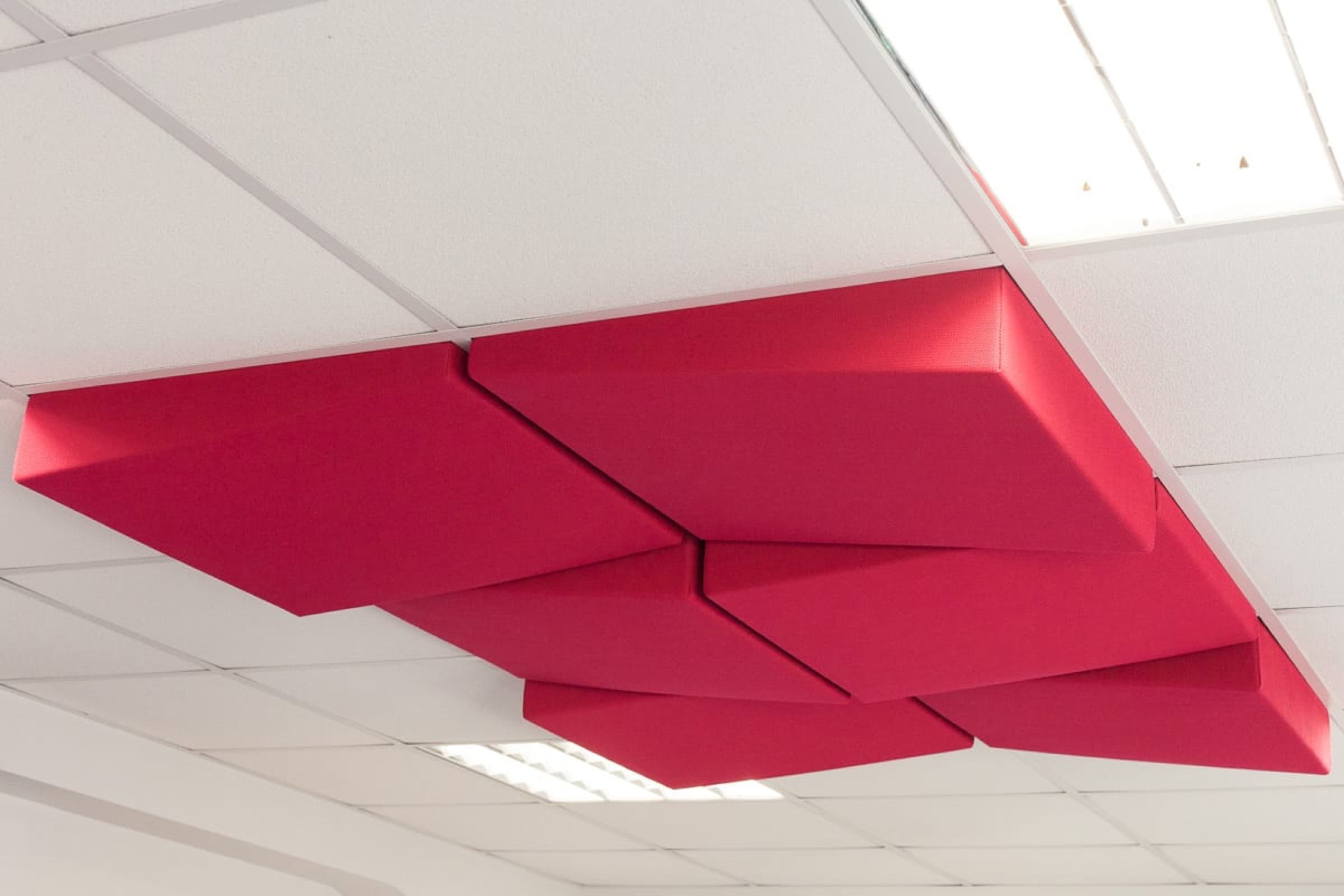

Abso ceiling pads are absorbers made to drop into an existing suspended ceiling with an exposed T grid. A slanted version sits alongside the flat pad. Pads add absorption to a standard modular ceiling without replacing it, for example above workstations to create quieter zones below. Each pad goes in or comes out in seconds, and flat and slanted pads can be mixed to give the ceiling some relief.
Technical data
Measurement data
Sound absorption
Reverberation chamber (ASTM C423 / ISO 354)· 2 variants
Frequency values
αp per octave band
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| αp | 0.25 | 0.90 | 1.00 | 1.00 | 0.95 | 0.95 |
Create a permanent free account. Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| grouped, 104 sq ft | NRC1.00 | |
| Single pad | Sabins/unit8.1 |
Test report: PV 1029
NRC: 1.00 (derived from ISO 354 lab data)
Institute: Texaa, Gradignan (FR)
Room volume: 7,126 cu ft
Object area: 104 sq ft
Measured values as a table (2 measurements)
| Build-up | NRC | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 23 × 23 × 3.3 in · Single pad (sabins/unit) | – | 1.1 | 1.6 | 2.6 | 3.6 | 4.5 | 6 | 7.9 | 8.5 | 8.4 | 8.4 | 8.1 | 7.5 | 6.9 | 6.8 | 6.5 | 7.2 | 6.9 | 6.9 |
| 23 × 23 × 3.3 in · grouped, 104 sq ft | 1.00 | 0.12 | 0.21 | 0.42 | 0.78 | 0.88 | 1.08 | 1.13 | 1.13 | 1.16 | 1.09 | 0.98 | 0.96 | 0.94 | 0.95 | 0.99 | 0.95 | 0.90 | 0.95 |
