Manufacturer
Texaa
Texaa is a privately owned French company with about 50 employees, based in Gradignan near Bordeaux. Since 1978 it has designed, manufactured and distributed acoustic solutions together with architects. Every product is covered with Aeria, Texaa's own sound-transparent knitted fabric, protected by an international patent and knitted in its workshop near Bordeaux in 30 colors. The range covers Stereo panels, Stereo Air open mesh panels, Strato ceilings, Vibrasto stretched cladding, Velio curtains, drapes and blinds, Kora screens and the Abso objects: cushions, pads, totems, cubes and cones. Texaa has offices in Frankfurt am Main and London, a sales contact for the USA, and exports worldwide.
Texaa Abso cushions
Description

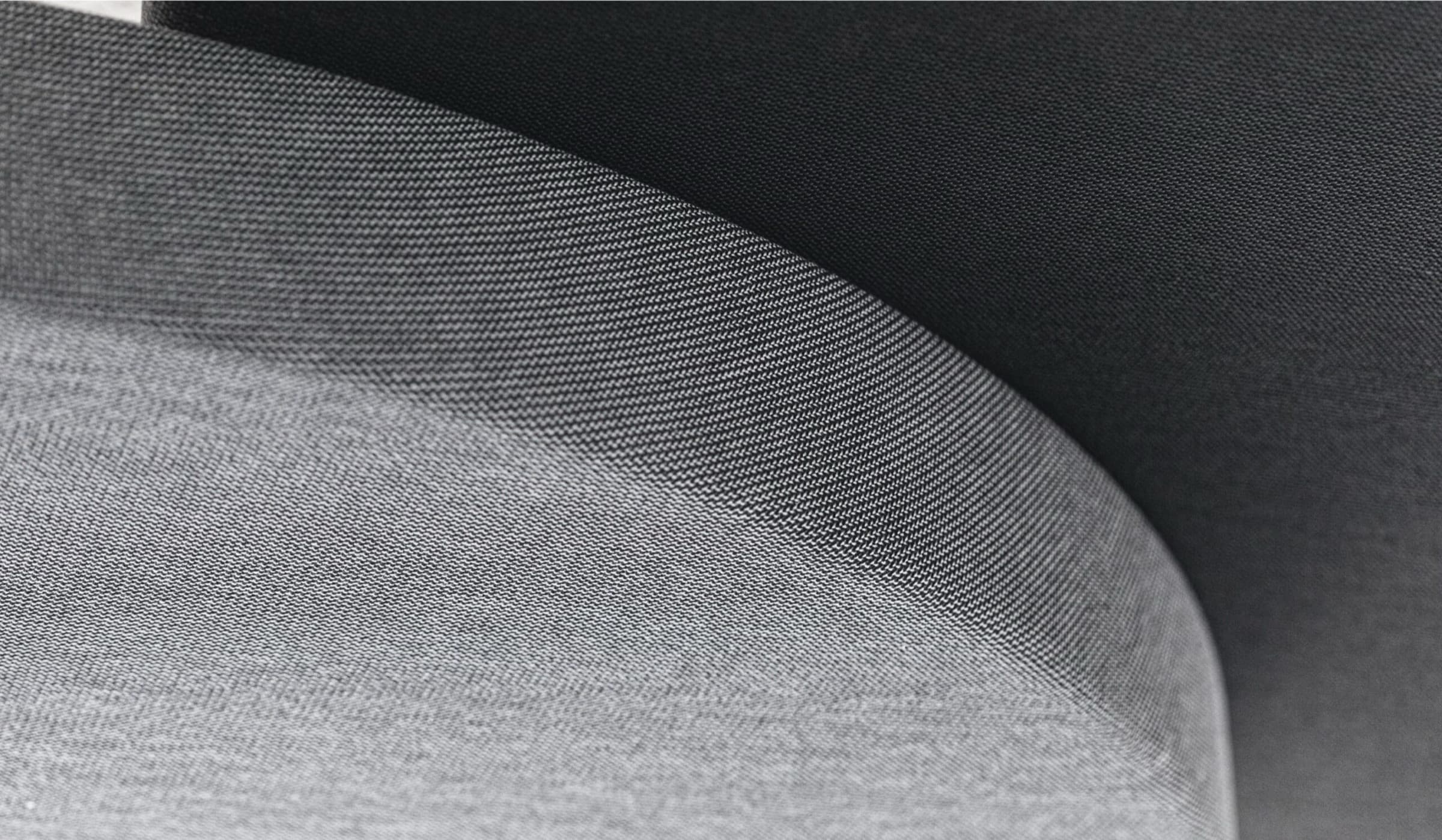

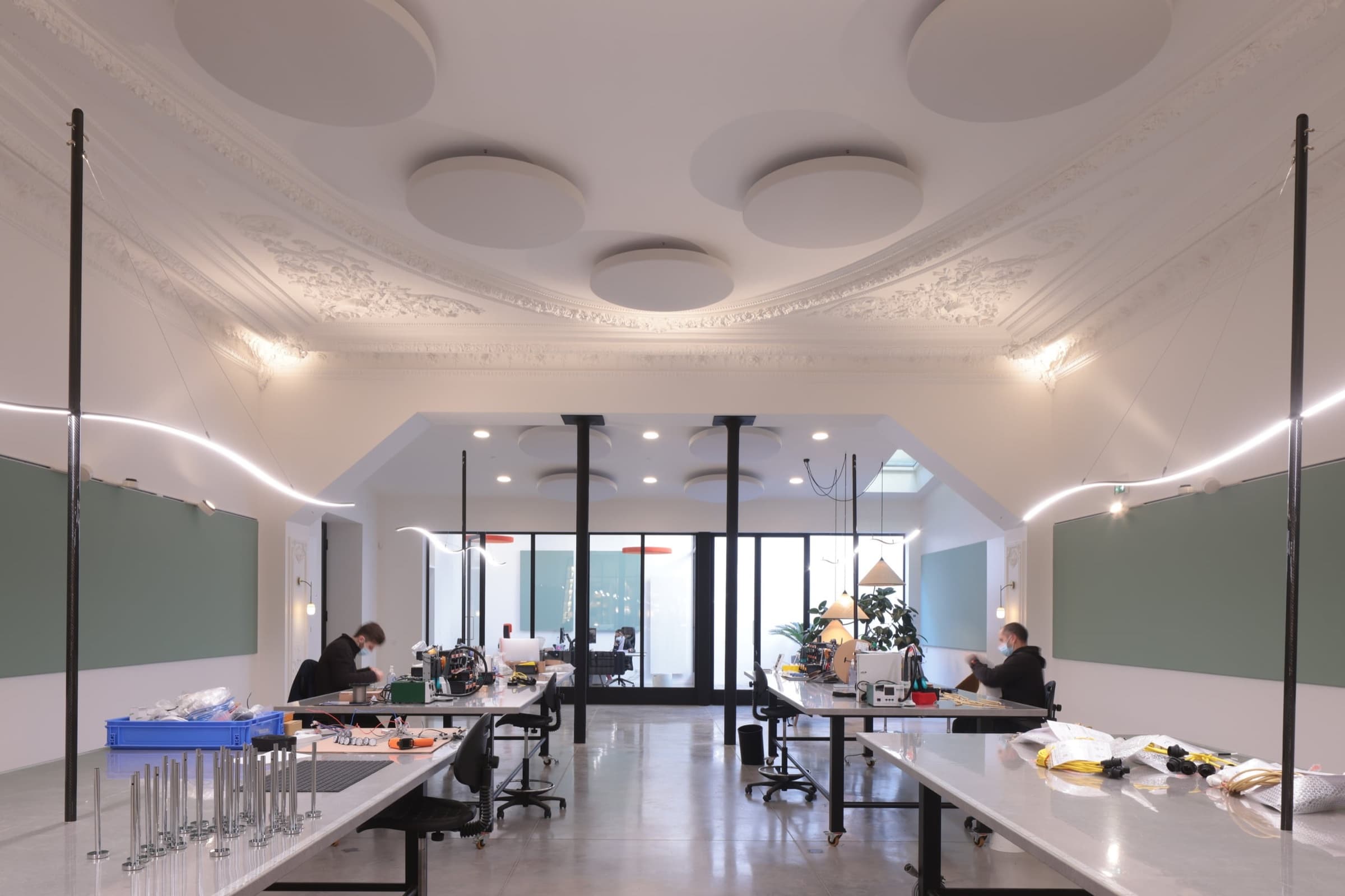

Abso cushions are the flat members of Texaa's Abso range: a slab of gray cellular foam with an Aeria knit cover stretched over a steel hoop, which gives them soft, rounded edges. They come as squares and rectangles with rounded corners and as discs. The shapes are sized to be combined into balanced groups below high ceilings and in large open volumes, including renovated buildings where old and new features meet. Each cushion is installed on its own; unlike Texaa Stereo panels, they are not joined into continuous clusters.
Technical data
Measurement data
Sound absorption
Reverberation chamber (ASTM C423 / ISO 354)· 12 variants
Choose mounting setup
Frequency values
Sabins per unit per ISO 354 · third-octave band
| f (Hz) | 100 | 125 | 160 | 200 | 250 | 315 |
|---|---|---|---|---|---|---|
| Sabins | 7.9 | 12 | 17 | 22 | 28 | 35 |
Create a permanent free account. Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| Rectangle 49 × 71 in | Sabins/unit35 | |
| Square 49 × 49 in | Sabins/unit26 | |
| Ø 49 in | Sabins/unit22 | |
| Ø 39 in | Sabins/unit16 | |
| Rectangle 25 × 49 in | Sabins/unit16 | |
| Ø 31 in | Sabins/unit12 |
Test report: PV 1171
Institute: Texaa, Gradignan (FR)
Room volume: 7,119 cu ft
Distance: directly on the ceiling
Measured values as a table (12 measurements)
| Build-up | NRC | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Square 49 × 49 in · 12 in suspended (sabins/unit) | – | 6.9 | 7 | 13 | 15 | 18 | 21 | 26 | 27 | 29 | 30 | 29 | 29 | 30 | 30 | 31 | 31 | 30 | 33 |
| Square 49 × 49 in · directly on the ceiling (sabins/unit) | – | 4.8 | 7.8 | 11 | 14 | 18 | 23 | 29 | 30 | 28 | 28 | 26 | 25 | 25 | 25 | 25 | 24 | 24 | 25 |
| Rectangle 25 × 49 in · 12 in suspended (sabins/unit) | – | 3.1 | 3.2 | 7.1 | 8.5 | 12 | 13 | 13 | 15 | 16 | 17 | 18 | 18 | 19 | 19 | 19 | 18 | 18 | 18 |
| Rectangle 25 × 49 in · directly on the ceiling (sabins/unit) | – | 1.8 | 3.6 | 6.4 | 8.1 | 12 | 13 | 15 | 17 | 18 | 17 | 16 | 15 | 15 | 14 | 14 | 13 | 14 | 13 |
| Rectangle 49 × 71 in · 12 in suspended (sabins/unit) | – | 10 | 9.1 | 15 | 20 | 25 | 32 | 33 | 37 | 42 | 42 | 39 | 42 | 42 | 44 | 44 | 42 | 42 | 45 |
| Rectangle 49 × 71 in · directly on the ceiling (sabins/unit) | – | 7.9 | 12 | 17 | 22 | 28 | 35 | 40 | 42 | 39 | 38 | 35 | 36 | 34 | 35 | 35 | 35 | 33 | 35 |
| Ø 31 in · 12 in suspended (sabins/unit) | – | 3.3 | 2.6 | 3.9 | 4.6 | 7.5 | 7.8 | 9.7 | 11 | 12 | 13 | 12 | 13 | 13 | 13 | 13 | 12 | 12 | 13 |
| Ø 31 in · directly on the ceiling (sabins/unit) | – | 1.6 | 2.8 | 3.8 | 5.2 | 6.9 | 8.6 | 10 | 12 | 13 | 12 | 12 | 11 | 11 | 10 | 10 | 11 | 10 | 11 |
| Ø 39 in · 12 in suspended (sabins/unit) | – | 4.3 | 3.4 | 7.1 | 8.6 | 12 | 14 | 14 | 16 | 17 | 17 | 17 | 18 | 18 | 18 | 18 | 19 | 17 | 17 |
| Ø 39 in · directly on the ceiling (sabins/unit) | – | 2.5 | 4.1 | 6.5 | 8.1 | 10 | 13 | 16 | 17 | 17 | 17 | 16 | 15 | 15 | 14 | 14 | 14 | 14 | 14 |
| Ø 49 in · 12 in suspended (sabins/unit) | – | 6.7 | 5.9 | 9.7 | 11 | 14 | 19 | 21 | 22 | 24 | 25 | 25 | 25 | 26 | 26 | 25 | 25 | 25 | 25 |
| Ø 49 in · directly on the ceiling (sabins/unit) | – | 3.7 | 5.4 | 10 | 11 | 14 | 17 | 22 | 25 | 26 | 23 | 22 | 21 | 20 | 20 | 20 | 19 | 19 | 20 |
Measured values as a table (12 measurements)
Access frequency bands, variants and export. Create a permanent free account
Last updated:
