Texaa is a privately owned French company with about 50 employees, based in Gradignan near Bordeaux. Since 1978 it has designed, manufactured and distributed acoustic solutions together with architects. Every product is covered with Aeria, Texaa's own sound-transparent knitted fabric, protected by an international patent and knitted in its workshop near Bordeaux in 30 colors. The range covers Stereo panels, Stereo Air open mesh panels, Strato ceilings, Vibrasto stretched cladding, Velio curtains, drapes and blinds, Kora screens and the Abso objects: cushions, pads, totems, cubes and cones. Texaa has offices in Frankfurt am Main and London, a sales contact for the USA, and exports worldwide.
Texaa Abso ceiling-hung objects
Description

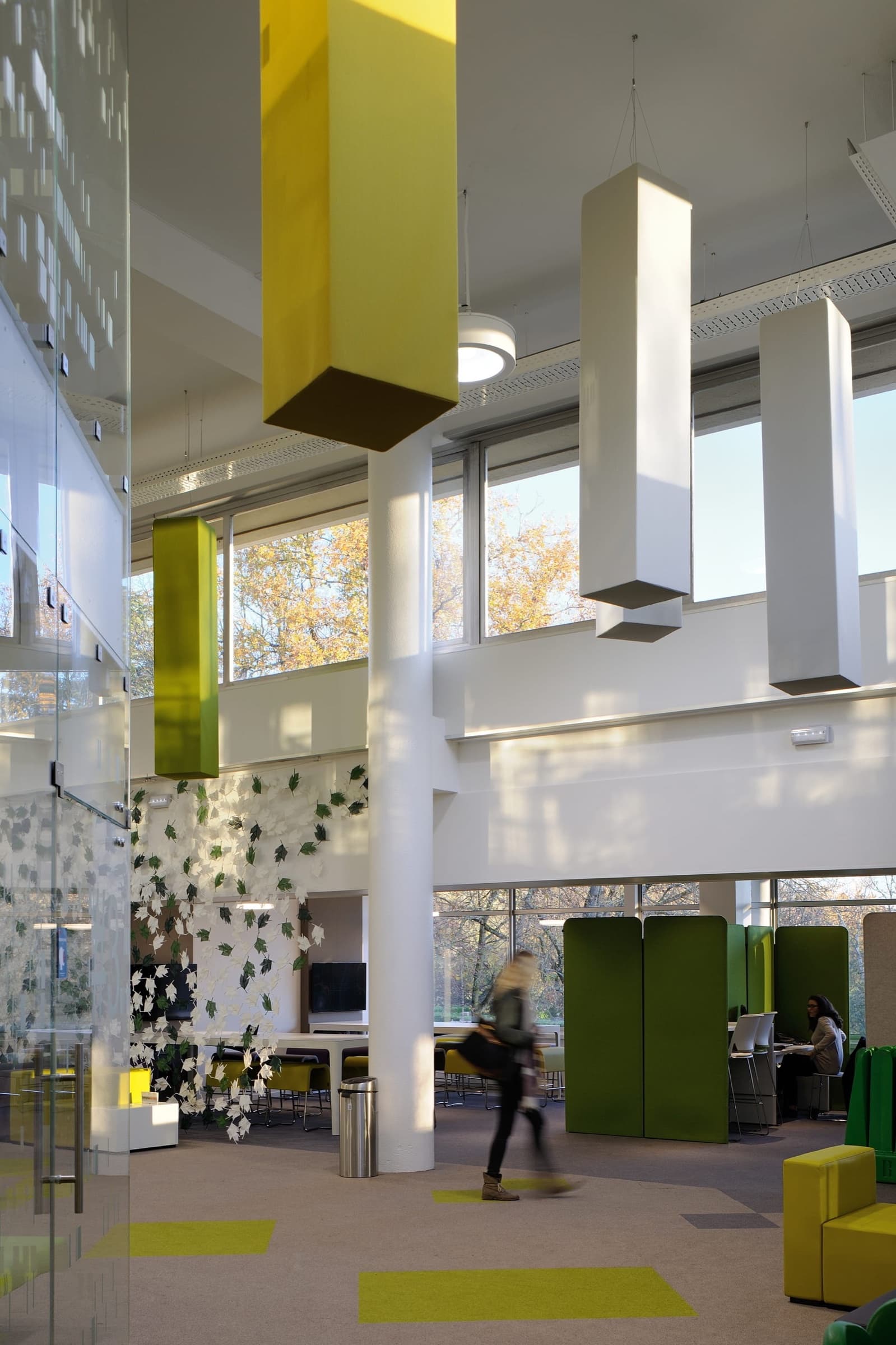

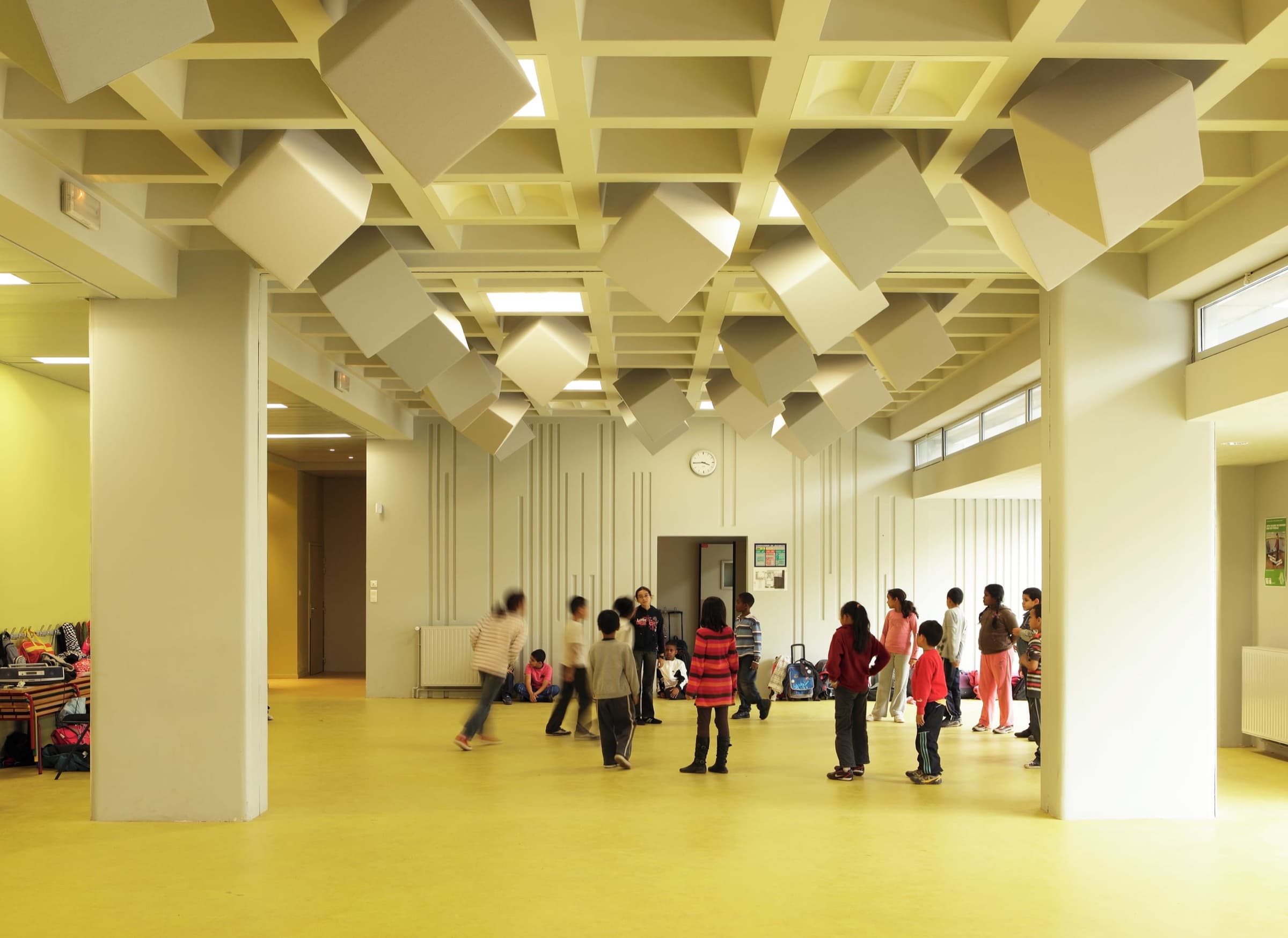

Texaa's ceiling-hung Abso objects are three-dimensional absorbers of gray cellular foam covered in Aeria knit: cubes in three sizes, a small cone and a tall totem. All are very light and hang from thin vertical cables. Cubes can hang diagonally from one corner or sit level in a steel hoop. They are meant for large volumes such as sports halls, swimming pools, schools and offices, and rooms with little free wall area, where they bring absorption into the room. Mixed freely, they can give a room structure or a playful note, and they suit all types of ceiling, including exposed roof structures. A free-standing version of the totem is listed as Abso totem.
Technical data
Measurement data
Sound absorption
Reverberation chamber (ASTM C423 / ISO 354)· 5 variants
Frequency values
Sabins per unit per ISO 354 · third-octave band
| f (Hz) | 100 | 125 | 160 | 200 | 250 | 315 |
|---|---|---|---|---|---|---|
| Sabins | 18 | 21 | 22 | 29 | 33 | 37 |
Create a permanent free account. Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| Cube 30 × 30 × 30 in | Sabins/unit42 | |
| Totem 79 × 15 × 15 in | Sabins/unit38 | |
| Cube 20 × 20 × 20 in | Sabins/unit19 | |
| Cube 15 × 15 × 15 in | Sabins/unit11 | |
| Cone 20 × 11 × 6.5 in | Sabins/unit6.4 |
Test report: PV 999
Institute: Texaa, Gradignan (FR)
Room volume: 7,119 cu ft
Measured values as a table (5 measurements)
| Build-up | NRC | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cube 15 × 15 × 15 in · suspended in the room (sabins/unit) | – | 2 | 2.9 | 4.1 | 5.4 | 6.7 | 8 | 10 | 11 | 11 | 11 | 11 | 10 | 11 | 10 | 10 | 9.9 | 9.3 | 9.7 |
| Cube 20 × 20 × 20 in · suspended in the room (sabins/unit) | – | 3 | 5.6 | 8.8 | 9.7 | 13 | 18 | 16 | 17 | 18 | 18 | 19 | 18 | 18 | 19 | 17 | 17 | 16 | 17 |
| Cube 30 × 30 × 30 in · suspended in the room (sabins/unit) | – | 18 | 21 | 22 | 29 | 33 | 37 | 41 | 40 | 40 | 42 | 42 | 41 | 39 | 40 | 40 | 39 | 39 | 40 |
| Cone 20 × 11 × 6.5 in · no gap to the ceiling (sabins/unit) | – | 0.65 | 0.65 | 2.3 | 2.5 | 3 | 3.9 | 5.3 | 5.4 | 6 | 6.4 | 6.4 | 5.8 | 5.8 | 5.4 | 5.5 | 5.3 | 5.1 | 5.4 |
| Totem 79 × 15 × 15 in · suspended in the room (sabins/unit) | – | 12 | 15 | 22 | 26 | 33 | 34 | 37 | 38 | 39 | 40 | 38 | 37 | 37 | 36 | 35 | 36 | 36 | 34 |
Measured values as a table (5 measurements)
