Acoustic Picture Modular
ORGANOID Acoustic Picture Modular
Sabins/unit 2.5–5.4 at 1 kHz
Manufacturer
ORGANOID
ORGANOID GmbH from Fliess in Tyrol produces natural surfaces from hand-processed raw materials: alpine hay, Wildspitze, flowers and wool felt are compressed into surfaces without added binders, so they keep their scent and their feel. Under the name “Aesthetics & Acoustics” the company runs its own acoustics range. At the heart of the modular products is the Active Core, an absorber board of hemp and binding fibres that is 93.8% biodegradable. Alongside it comes the Infinity slat system on an MDF carrier for wall and ceiling surfaces.
Documents
Description

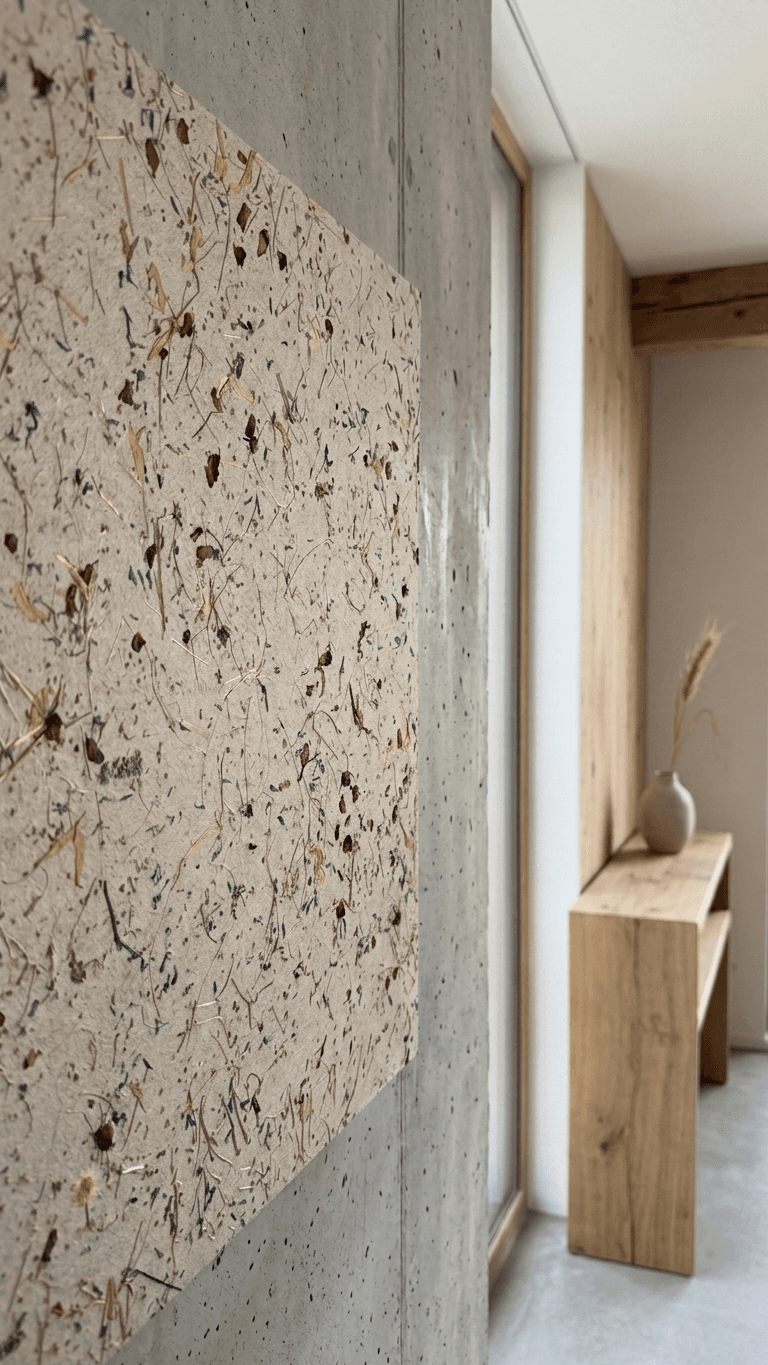

The Acoustic Picture Modular is a wall object with an ORGANOID ALMWIESE light natural surface (ALPINE MEADOW light in ORGANOID's English brochure) in the formats 24 × 24 × 1.6 in and 47 × 24 × 1.6 in. Optionally with a folded-over frame, where the natural surface continues around the edge, or with a black wooden frame. The Active Core absorber core is made of hemp fibres and a binding component and is free from harmful substances. It can be punched, sawn, water-jet cut or CNC-machined.
Technical data
Measurement data
Sound absorption
Reverberation chamber (ASTM C423 / ISO 354)· 2 variants
Frequency values
Create a permanent free account. Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| 47 × 24 × 1.6 in | Sabins/unit5.4 | |
| 24 × 24 × 1.6 in | Sabins/unit2.5 |
Test report: Protokolle Akustikbild, Prüfdatum 10.03.2026
Institute: Acoustics laboratory of Fuchs Raumingenieure, Nuremberg
Dimensions: 47 × 24 × 1.6 in
Distance: 0.79 in cavity behind the picture, unfilled
Measured values as a table (2 measurements)
| Build-up | NRC | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 × 24 × 1.6 in · 0.79 in cavity behind the picture, unfilled · ALMWIESE light (sabins/unit) | – | 2.2 | 1.1 | 2.2 | 2.2 | 2.2 | 3.2 | 2.2 | 3.2 | 2.2 | 2.2 | 2.2 | 3.2 | 2.2 | 1.1 | 4.3 | 0 | 1.1 | 1.1 |
| 47 × 24 × 1.6 in · 0.79 in cavity behind the picture, unfilled · ALMWIESE light (sabins/unit) | – | 1.1 | 2.2 | 4.3 | 4.3 | 4.3 | 5.4 | 5.4 | 5.4 | 6.5 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 6.5 | 4.3 | 4.3 | 5.4 |
Measured values as a table (2 measurements)
Access frequency bands, variants and export. Create a permanent free account
Last updated:
