Acoustic Tiles Modular
ORGANOID Acoustic Tiles Modular
NRC 0.75–1.00
Manufacturer
ORGANOID
ORGANOID GmbH from Fliess in Tyrol produces natural surfaces from hand-processed raw materials: alpine hay, Wildspitze, flowers and wool felt are compressed into surfaces without added binders, so they keep their scent and their feel. Under the name “Aesthetics & Acoustics” the company runs its own acoustics range. At the heart of the modular products is the Active Core, an absorber board of hemp and binding fibres that is 93.8% biodegradable. Alongside it comes the Infinity slat system on an MDF carrier for wall and ceiling surfaces.
Documents
Description

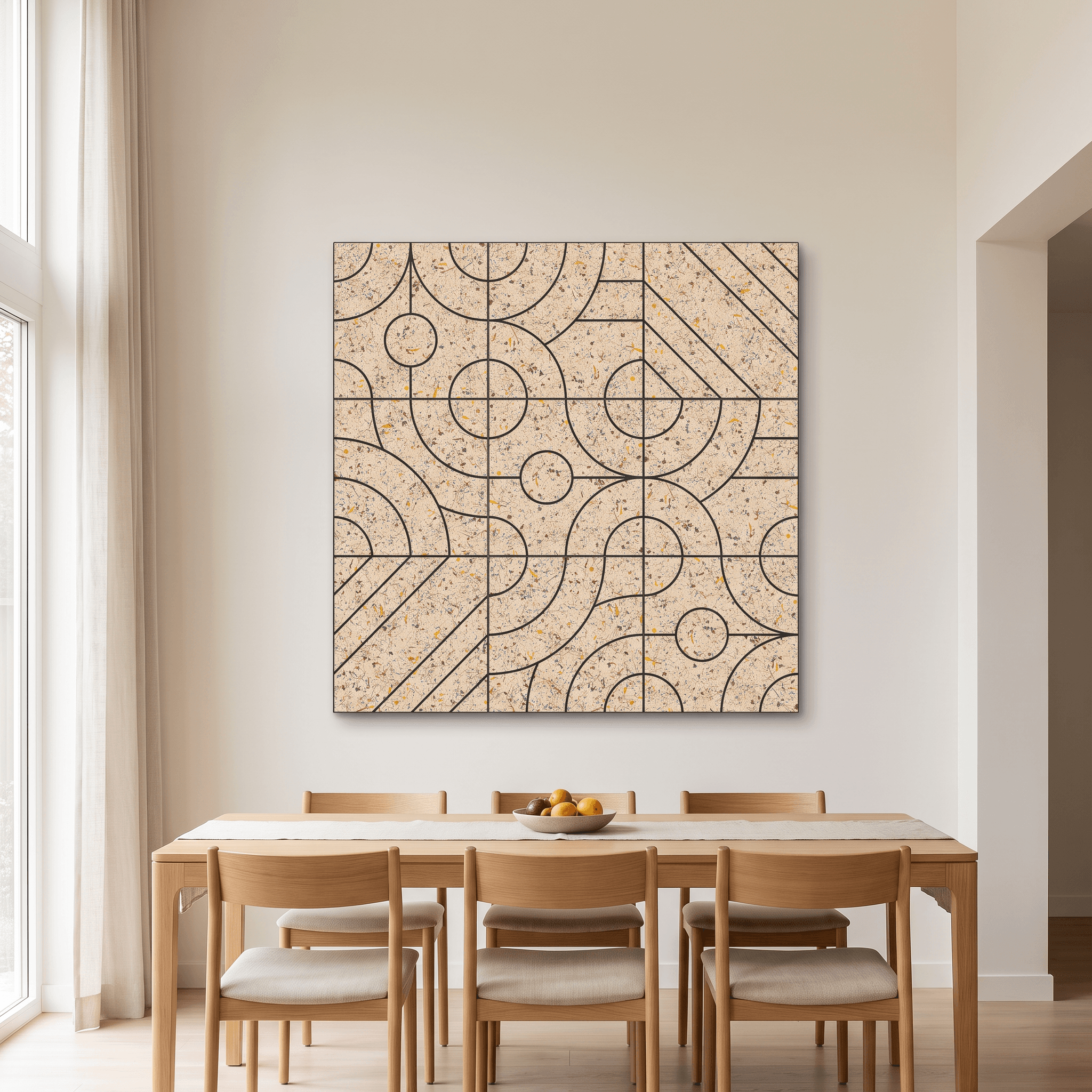

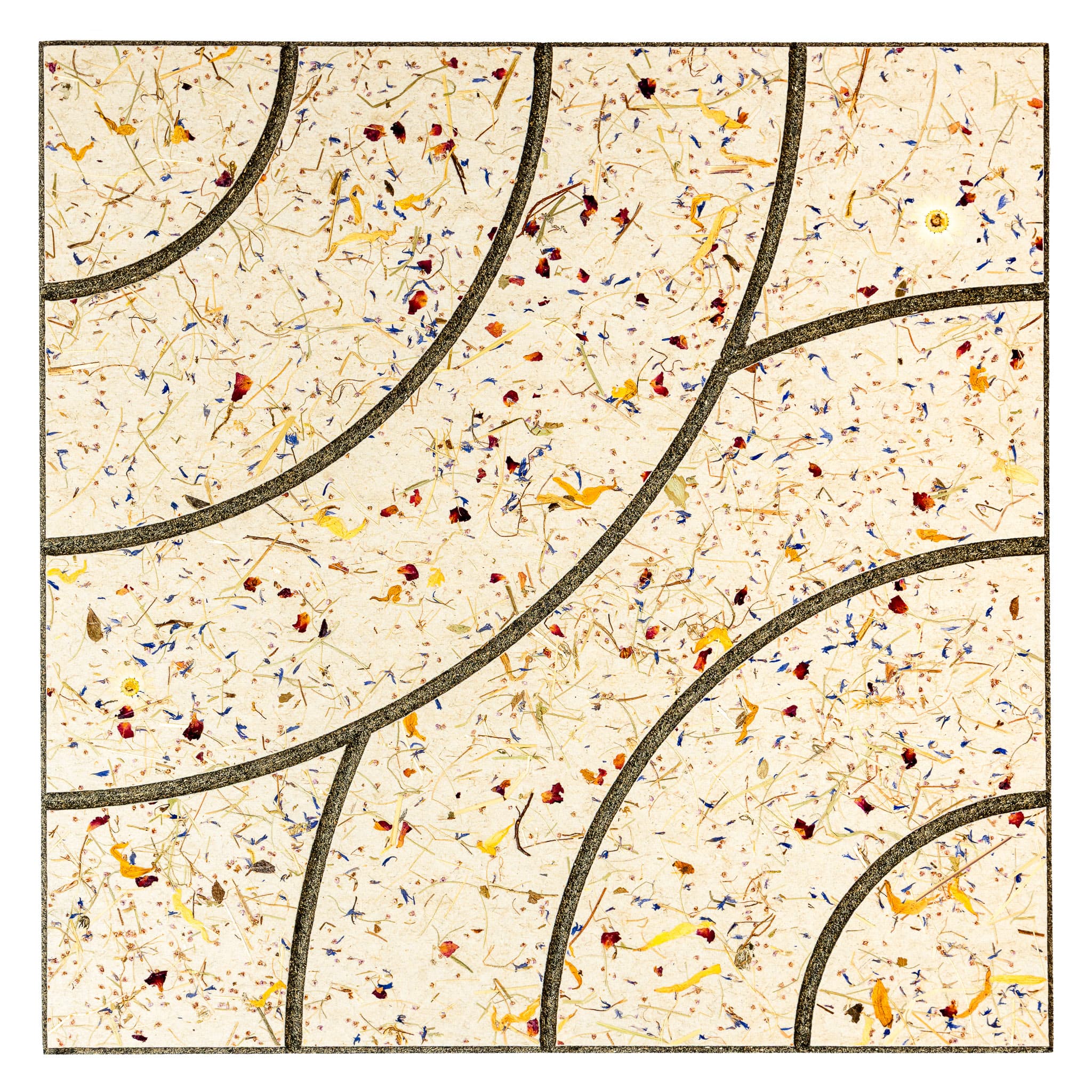

The Acoustic Tiles Modular are square absorber elements in the format 23 × 23 × 0.79 in with an ORGANOID natural surface in ALMWIESE light (ALPINE MEADOW light in ORGANOID's English brochure). Nine different V-cut structures let the individual elements be combined into individual surfaces, graphic patterns or continuous wall images. The Active Core absorber core is made of hemp fibres and a binding component and is free from harmful substances. It can be punched, sawn, water-jet cut or CNC-machined.
Technical data
Measurement data
Sound absorption
Reverberation chamber (ASTM C423 / ISO 354)· 8 variants
Frequency values
Create a permanent free account. Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | ||
|---|---|---|---|
| 1.6 in cavity, fully filled with 1.6 in sheep-wool insulation | ALMWIESE light | NRC1.00 | |
| 1.6 in cavity, fully filled with 1.6 in sheep-wool insulation | WOOL | NRC1.00 | |
| 7.1 in cavity, of which 1.6 in sheep-wool insulation | ALMWIESE light | NRC1.00 | |
| 7.1 in cavity, of which 1.6 in sheep-wool insulation | WOOL | NRC1.00 | |
| 7.1 in cavity, unfilled | ALMWIESE light | NRC0.95 | |
| 7.1 in cavity, unfilled | WOOL | NRC0.95 | |
| Directly on the substrate, no cavity | ALMWIESE light | NRC0.75 | |
| Directly on the substrate, no cavity | WOOL | NRC0.75 |
Test report: FRILAB-20260507-99-01
NRC: 1.00 (derived from ISO 354 lab data)
Institute: Acoustics laboratory of Fuchs Raumingenieure, Nuremberg
Measurement date: 03/10/2026
Room volume: 13,829 cu ft
Object area: 128 sq ft
Dimensions: 23 × 23 × 0.79 in
Surface: ALMWIESE light
Measured values as a table (8 measurements)
| Build-up | NRC | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.79 in · Directly on the substrate, no cavity · ALMWIESE light | 0.75 | 0.03 | 0.05 | 0.08 | 0.12 | 0.19 | 0.33 | 0.47 | 0.67 | 0.82 | 0.94 | 1.01 | 1.03 | 1.05 | 1.07 | 1.03 | 1.05 | 1.00 | 0.98 |
| 0.79 in · Directly on the substrate, no cavity · WOOL | 0.75 | 0.04 | 0.06 | 0.08 | 0.13 | 0.23 | 0.37 | 0.51 | 0.68 | 0.81 | 0.90 | 0.98 | 1.02 | 1.03 | 1.08 | 1.08 | 1.07 | 1.02 | 1.04 |
| 0.79 in · 1.6 in cavity, fully filled with 1.6 in sheep-wool insulation · ALMWIESE light | 1.00 | 0.23 | 0.33 | 0.45 | 0.67 | 0.87 | 0.97 | 1.04 | 1.12 | 1.11 | 1.08 | 1.05 | 1.05 | 0.99 | 0.95 | 0.99 | 0.99 | 1.01 | 1.06 |
| 0.79 in · 1.6 in cavity, fully filled with 1.6 in sheep-wool insulation · WOOL | 1.00 | 0.24 | 0.35 | 0.47 | 0.69 | 0.88 | 0.93 | 1.00 | 1.06 | 1.11 | 1.06 | 1.08 | 1.06 | 1.04 | 1.01 | 1.00 | 1.04 | 1.01 | 1.07 |
| 0.79 in · 7.1 in cavity, unfilled · ALMWIESE light | 0.95 | 0.23 | 0.33 | 0.51 | 0.68 | 0.87 | 0.95 | 1.02 | 1.03 | 0.98 | 0.88 | 0.86 | 0.95 | 0.96 | 0.98 | 1.00 | 1.01 | 1.04 | 1.07 |
| 0.79 in · 7.1 in cavity, unfilled · WOOL | 0.95 | 0.23 | 0.34 | 0.53 | 0.69 | 0.86 | 0.93 | 1.00 | 1.04 | 1.01 | 0.90 | 0.86 | 0.98 | 0.98 | 0.97 | 1.01 | 1.01 | 1.07 | 1.12 |
| 0.79 in · 7.1 in cavity, of which 1.6 in sheep-wool insulation · ALMWIESE light | 1.00 | 0.36 | 0.48 | 0.69 | 0.90 | 1.00 | 1.03 | 1.06 | 1.05 | 0.97 | 0.92 | 0.96 | 1.02 | 1.01 | 1.01 | 1.01 | 1.02 | 1.08 | 1.12 |
| 0.79 in · 7.1 in cavity, of which 1.6 in sheep-wool insulation · WOOL | 1.00 | 0.38 | 0.50 | 0.70 | 0.89 | 0.98 | 1.03 | 1.04 | 1.04 | 0.99 | 0.92 | 0.96 | 1.03 | 1.03 | 1.02 | 1.02 | 1.04 | 1.10 | 1.12 |
Measured values as a table (8 measurements)
Access frequency bands, variants and export. Create a permanent free account
