Monowall
Monowall
Description

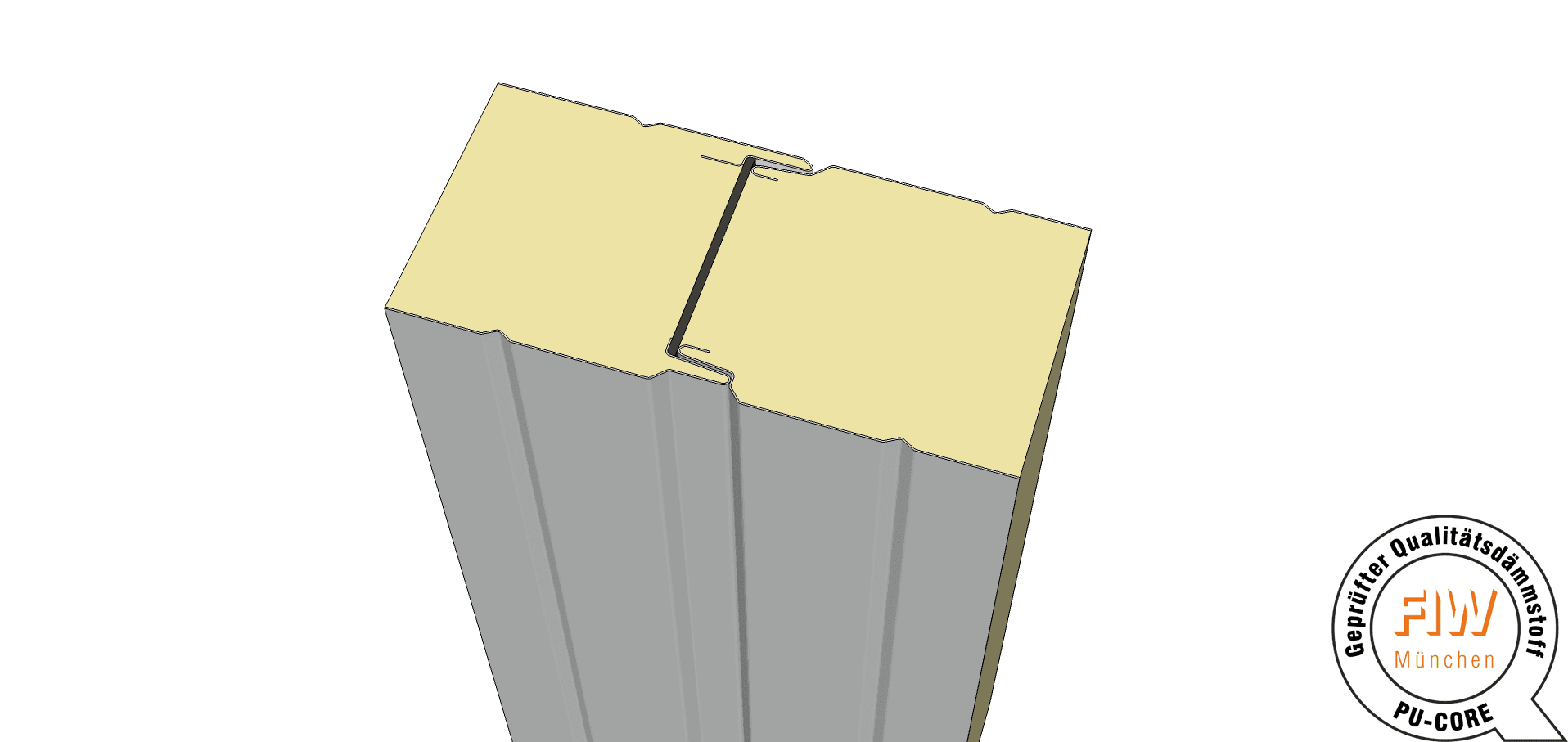

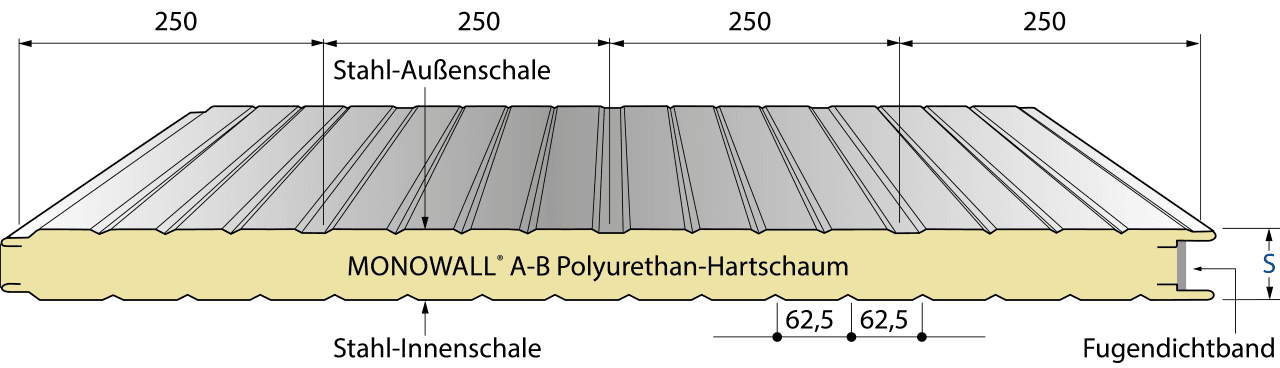

Wall sandwich panel with a PU/PIR core for façades in hall and industrial construction. Airborne sound insulation tested in the laboratory as a single panel (60 mm).
Technical data
Material: Sandwich panel, PU/PIR core, unperforated steel facings
Application: Wall and façade in hall and industrial construction
Measurement data
Last updated:
Building acoustics dataRw 24 (-2; -3) dB · 1 measurement
Rw
24 (-2; -3) dB
Airborne sound insulation Rw· 1 variant
EN ISO 10140-2 / ISO 717-1 · Thickness: 2.4 in
Frequency values
R per third-octave band in dB
| f (Hz) | 100 | 125 | 160 | 200 | 250 | 315 |
|---|---|---|---|---|---|---|
| R | 25.80 | 13.80 | 15.70 | 17.80 | 18.00 | 19.50 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
TU Eindhoven (NL) · 2020 · 039
