Manufacturer

BVS Akustik

BVS Akustik GmbH & Co. KG from Verl (East Westphalia) has been active in the furniture industry since 1990 and produces custom acoustic panels with CNC saws, purpose-built drilling lines and an in-house laser system. Almost all board materials are processed: solid wood, veneered, composite and decor boards, each cut, edge-finished and lacquered to the customer's specification. The range covers drilled (AKUSTIbohr), micro-perforated (AKUSTIpur), slotted (AKUSTIpan) and sound-absorbing partition elements (AKUSTItrenn), each in numerous hole patterns and build-up depths. The elements are available in fire classes B1 and B2 and, for sports halls, with certified ball-impact resistance. References include Princeton University, NYU and the Emser Therme.

All products by this manufacturer Manufacturer website

Documents

Brochure Case study Processing guideline Datasheet (measurement results)Certificate (formaldehyde-free, NAF)Blauer Engel DE-UZ 38 (EPH Dresden)FSC-Certificate (GFA-COC-005281, bis 30.06.2031)

Test report on request

AKUSTIpur Acoustic Furniture Front

Name: AKUSTIpur Acoustic Furniture Front
Brand: BVS Akustik

AKUSTIpur

WallCeiling

Description

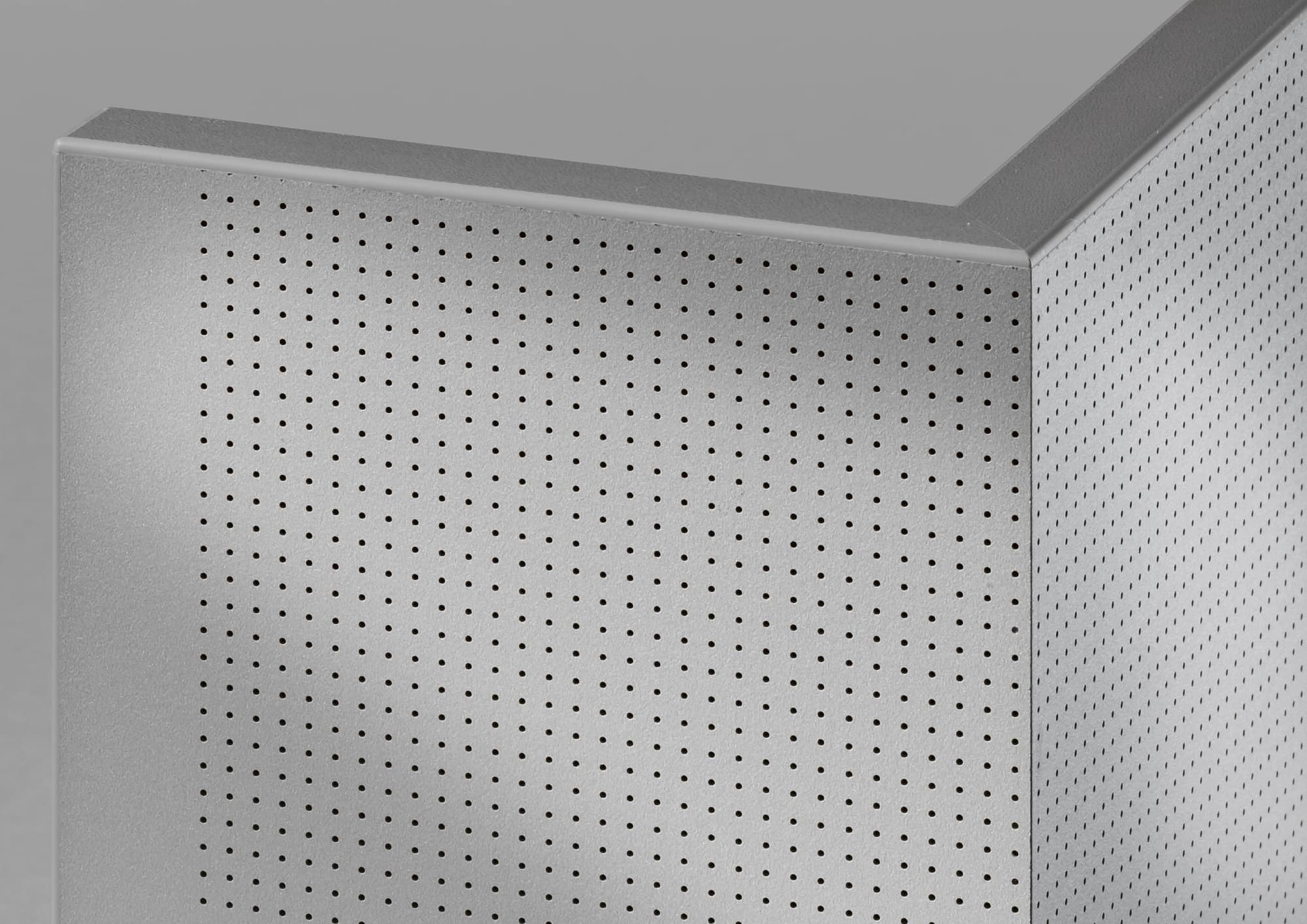

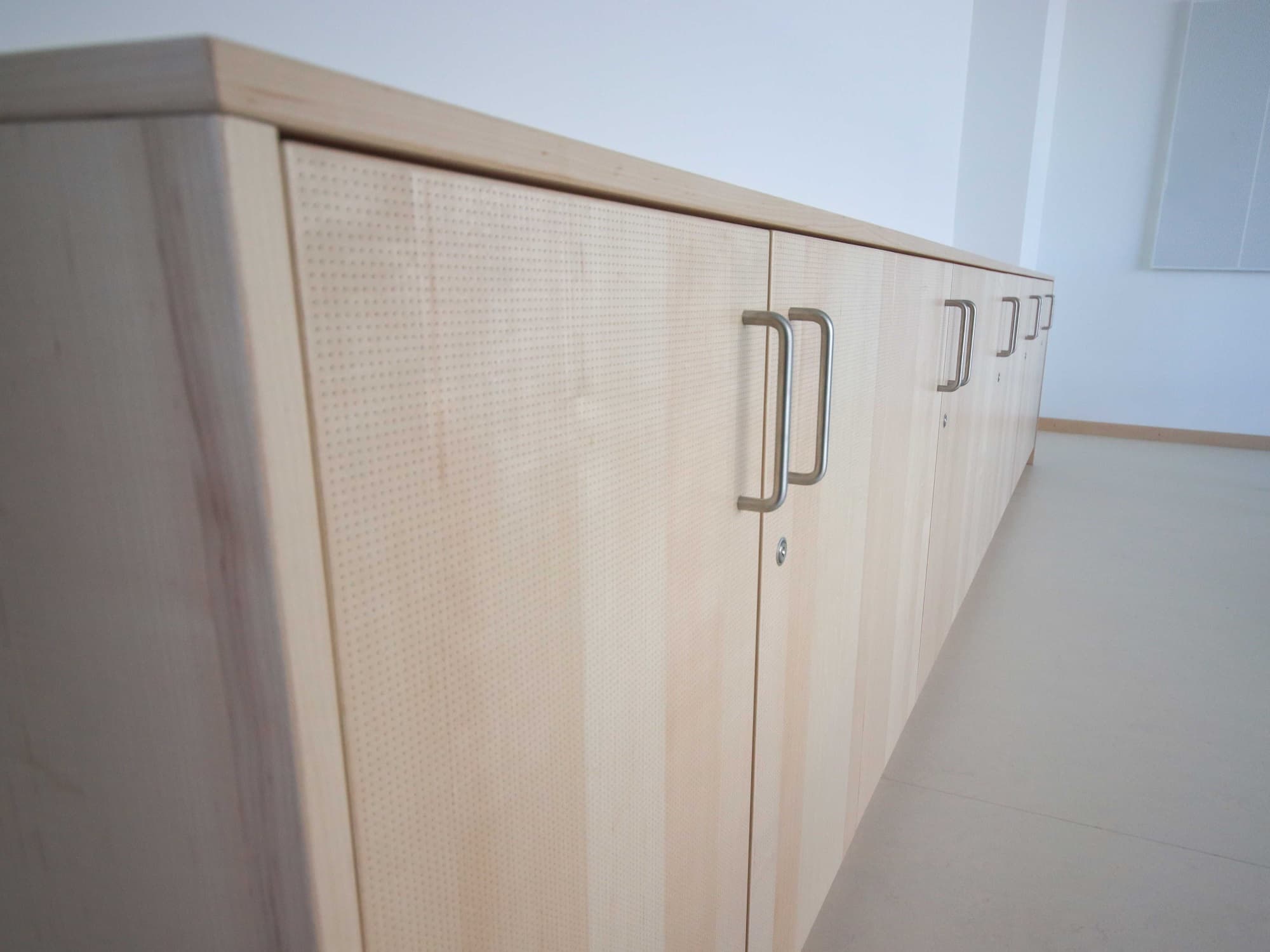

AKUSTIpur is a multi-purpose acoustic panel from BVS, micro-perforated on both sides, for furniture and interior fit-out. The MDF carrier board is available veneered, with a primer foil or with a melamine-resin coating and carries a fine micro-perforation with hole diameters from 1 mm as standard up to 2.5 mm and grids from 4 to 8 mm, either over the full surface or with unperforated edge margins. A fleece core integrated into the panel and the symmetrical, warp-free build-up make the panel acoustically effective on both sides and allow direct further processing without an additional fixing frame. It stays stable when dowelled, grooved, screwed and when fittings are attached, allows cuts and cut-outs on site and can be lacquered. AKUSTIpur is available as the large-format AKUSTIpur Standard panel with dimensions up to 3010 mm in length and 1300 mm in width, and as AKUSTIpur Fix, cut to size with an unperforated edge. Acoustically, the panel works through the interplay of micro-perforation, fleece core and the depth of the build-up behind it. The hole grid and the distance to the surface behind determine in which frequency range the panel takes up sound. Sound absorption is determined in the reverberation room per EN ISO 354 and rated per EN ISO 11654. For design work the full third-octave curve matters alongside the weighted single-number rating, because performance differs across the frequency bands depending on hole pattern and build-up depth.

Technical data

Material: MDF carrier board, optionally veneered, with primer foil or melamine-resin coating; integrated fleece core; lacquerable surface

Up to fire class: B1 and B2 per DIN 4102

Application: Wall cladding, furniture fronts, carcass parts, interior fit-out, room dividers, recording studios, concert halls, theatres, lecture halls, conference rooms

Measurement data

Sound absorption

Reverberation chamber (ASTM C423 / ISO 354)· 26 variants

Choose perforation

NRC

0.95

Frequency values

α_p per octave band

f (Hz)	125	250	500	1k	2k	4k
α_p	0.20	0.75	1.00	1.00	0.95	0.75

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

Compare		Value
	h=2.8 in · with 1.2 in insulation	NRC0.95
	h=2 in · with 1.2 in insulation	NRC0.90
	h=7.5 in · without insulation	NRC0.80
	h=17 in · without insulation	NRC0.80
	h=2 in · without insulation	NRC0.75
	Free-standing screen · effective on both sides	NRC0.55

NRC: 0.95 (derived from ISO 354 lab data)

Institute: Swisscom (Schweiz) AG, Test Laboratory STS 121

Measurement date: 2012-07-16

Perforation: 1/4/4/P · 4,91 %

Measured values as a table (25 measurements)

AKUSTIpur Acoustic Furniture Front: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-up	NRC	100 Hz	125 Hz	160 Hz	200 Hz	250 Hz	315 Hz	400 Hz	500 Hz	630 Hz	800 Hz	1000 Hz	1250 Hz	1600 Hz	2000 Hz	2500 Hz	3150 Hz	4000 Hz	5000 Hz
1/4,57/4,57/P · 3,76 % · h=50 mm · with 30 mm insulation	0.85	0.11	0.20	0.30	0.58	0.70	0.78	0.92	0.89	0.91	0.91	0.91	0.90	0.86	0.89	0.95	0.85	0.64	0.45
1/4,57/4,57/P · 3,76 % · h=70 mm · with 30 mm insulation	0.90	0.14	0.23	0.32	0.64	0.76	0.85	0.94	0.93	0.92	0.93	0.89	0.85	0.85	0.92	0.97	0.86	0.67	0.52
1/4,57/4,57/P · 3,76 % · h=190 mm · without insulation	0.80	0.20	0.25	0.37	0.62	0.65	0.72	0.76	0.83	0.83	0.82	0.76	0.81	0.86	0.86	0.92	0.84	0.64	0.45
1/4,57/4,57/P · 3,76 % · h=420 mm · without insulation	0.80	0.38	0.72	0.61	0.70	0.64	0.79	0.69	0.68	0.77	0.77	0.84	0.89	0.90	0.97	1.01	0.96	0.78	0.61
1/4,57/4,57/P · 3,76 % · Free-standing screen · effective on both sides	0.55	0.08	0.16	0.27	0.30	0.35	0.40	0.45	0.50	0.51	0.55	0.62	0.67	0.76	0.82	0.83	0.78	0.60	0.48
1/4/4/P · 4,91 % · h=50 mm · with 30 mm insulation	0.90	0.10	0.18	0.29	0.56	0.71	0.83	1.00	1.01	1.02	0.99	1.01	0.98	0.92	0.92	1.02	0.90	0.68	0.51
1/4/4/P · 4,91 % · h=50 mm · without insulation	0.75	0.03	0.03	0.13	0.22	0.29	0.38	0.57	0.78	0.89	0.97	1.00	1.01	0.92	0.87	0.93	0.94	0.72	0.55
1/4/4/P · 4,91 % · h=70 mm · with 30 mm insulation	0.95	0.12	0.20	0.30	0.62	0.75	0.91	1.05	1.05	1.03	1.01	1.03	0.92	0.90	0.92	1.00	0.93	0.73	0.58
1/4/4/P · 4,91 % · h=190 mm · without insulation	0.80	0.20	0.22	0.34	0.63	0.68	0.78	0.83	0.91	0.89	0.83	0.77	0.81	0.88	0.88	0.98	0.90	0.68	0.48
1/4/4/P · 4,91 % · h=420 mm · without insulation	0.80	0.36	0.67	0.60	0.69	0.64	0.78	0.67	0.66	0.77	0.79	0.83	0.87	0.92	0.99	1.01	0.96	0.77	0.62
1/4/4/P · 4,91 % · Free-standing screen · effective on both sides	0.55	0.09	0.17	0.32	0.34	0.39	0.42	0.46	0.48	0.50	0.53	0.58	0.61	0.68	0.76	0.80	0.79	0.63	0.51
1/5,33/5,33/P · 2,76 % · h=50 mm · with 30 mm insulation	0.70	0.18	0.26	0.33	0.53	0.58	0.55	0.61	0.60	0.64	0.68	0.70	0.76	0.77	0.84	0.90	0.81	0.58	0.39
1/5,33/5,33/P · 2,76 % · h=70 mm · with 30 mm insulation	0.70	0.20	0.31	0.34	0.58	0.61	0.60	0.66	0.61	0.64	0.69	0.69	0.76	0.80	0.86	0.89	0.82	0.59	0.47
1/5,33/5,33/P · 2,76 % · h=190 mm · without insulation	0.65	0.23	0.31	0.40	0.47	0.47	0.49	0.53	0.57	0.62	0.66	0.67	0.73	0.80	0.83	0.89	0.76	0.58	0.40
1/5,33/5,33/P · 2,76 % · h=420 mm · without insulation	0.65	0.38	0.43	0.43	0.44	0.46	0.48	0.46	0.53	0.59	0.62	0.69	0.76	0.84	0.94	0.91	0.83	0.64	0.49
1/5,33/5,33/P · 2,76 % · Free-standing screen · effective on both sides	0.50	0.04	0.09	0.15	0.18	0.23	0.25	0.32	0.38	0.42	0.48	0.59	0.67	0.76	0.83	0.87	0.76	0.59	0.43
1/6,4/6,4/P · 1,92 % · h=50 mm · with 30 mm insulation	0.70	0.14	0.24	0.33	0.60	0.69	0.70	0.79	0.72	0.73	0.74	0.70	0.68	0.65	0.68	0.69	0.65	0.46	0.33
1/6,4/6,4/P · 1,92 % · h=70 mm · with 30 mm insulation	0.70	0.18	0.27	0.35	0.62	0.72	0.75	0.79	0.73	0.72	0.72	0.69	0.64	0.64	0.67	0.68	0.64	0.46	0.36
1/6,4/6,4/P · 1,92 % · h=190 mm · without insulation	0.65	0.21	0.30	0.40	0.55	0.56	0.60	0.64	0.66	0.68	0.66	0.65	0.65	0.67	0.67	0.72	0.63	0.47	0.33
1/6,4/6,4/P · 1,92 % · h=420 mm · without insulation	0.65	0.41	0.52	0.48	0.52	0.54	0.59	0.56	0.61	0.66	0.65	0.65	0.68	0.68	0.73	0.73	0.69	0.51	0.43
1/6,4/6,4/P · 1,92 % · Free-standing screen · effective on both sides	0.50	0.05	0.15	0.20	0.27	0.34	0.38	0.44	0.47	0.51	0.53	0.56	0.59	0.60	0.65	0.64	0.62	0.48	0.38
1/8/8/P · 1,23 % · h=50 mm · with 30 mm insulation	0.55	0.19	0.27	0.34	0.55	0.60	0.57	0.62	0.55	0.56	0.53	0.52	0.47	0.50	0.52	0.55	0.51	0.35	0.27
1/8/8/P · 1,23 % · h=70 mm · with 30 mm insulation	0.55	0.22	0.31	0.33	0.55	0.61	0.59	0.64	0.55	0.55	0.54	0.52	0.49	0.49	0.53	0.56	0.52	0.39	0.29
1/8/8/P · 1,23 % · h=190 mm · without insulation	0.50	0.22	0.29	0.41	0.46	0.45	0.49	0.51	0.53	0.53	0.51	0.49	0.50	0.51	0.52	0.57	0.51	0.37	0.23
1/8/8/P · 1,23 % · h=420 mm · without insulation	0.50	0.35	0.41	0.42	0.42	0.46	0.48	0.43	0.49	0.52	0.50	0.49	0.49	0.53	0.57	0.59	0.57	0.44	0.35
