Manufacturer

BVS Akustik

BVS Akustik GmbH & Co. KG from Verl (East Westphalia) has been active in the furniture industry since 1990 and produces custom acoustic panels with CNC saws, purpose-built drilling lines and an in-house laser system. Almost all board materials are processed: solid wood, veneered, composite and decor boards, each cut, edge-finished and lacquered to the customer's specification. The range covers drilled (AKUSTIbohr), micro-perforated (AKUSTIpur), slotted (AKUSTIpan) and sound-absorbing partition elements (AKUSTItrenn), each in numerous hole patterns and build-up depths. The elements are available in fire classes B1 and B2 and, for sports halls, with certified ball-impact resistance. References include Princeton University, NYU and the Emser Therme.

All products by this manufacturer Manufacturer website

Documents

Brochure Ausschreibungstext Processing guideline Datasheet (measurement results)Blauer Engel DE-UZ 38 (EPH Dresden)FSC-Certificate (GFA-COC-005281, bis 30.06.2031)

Test report on request

AKUSTIpan green silence Acoustic Panel

Name: AKUSTIpan green silence Acoustic Panel
Brand: BVS Akustik

AKUSTIpan green silence

WallCeiling

Description

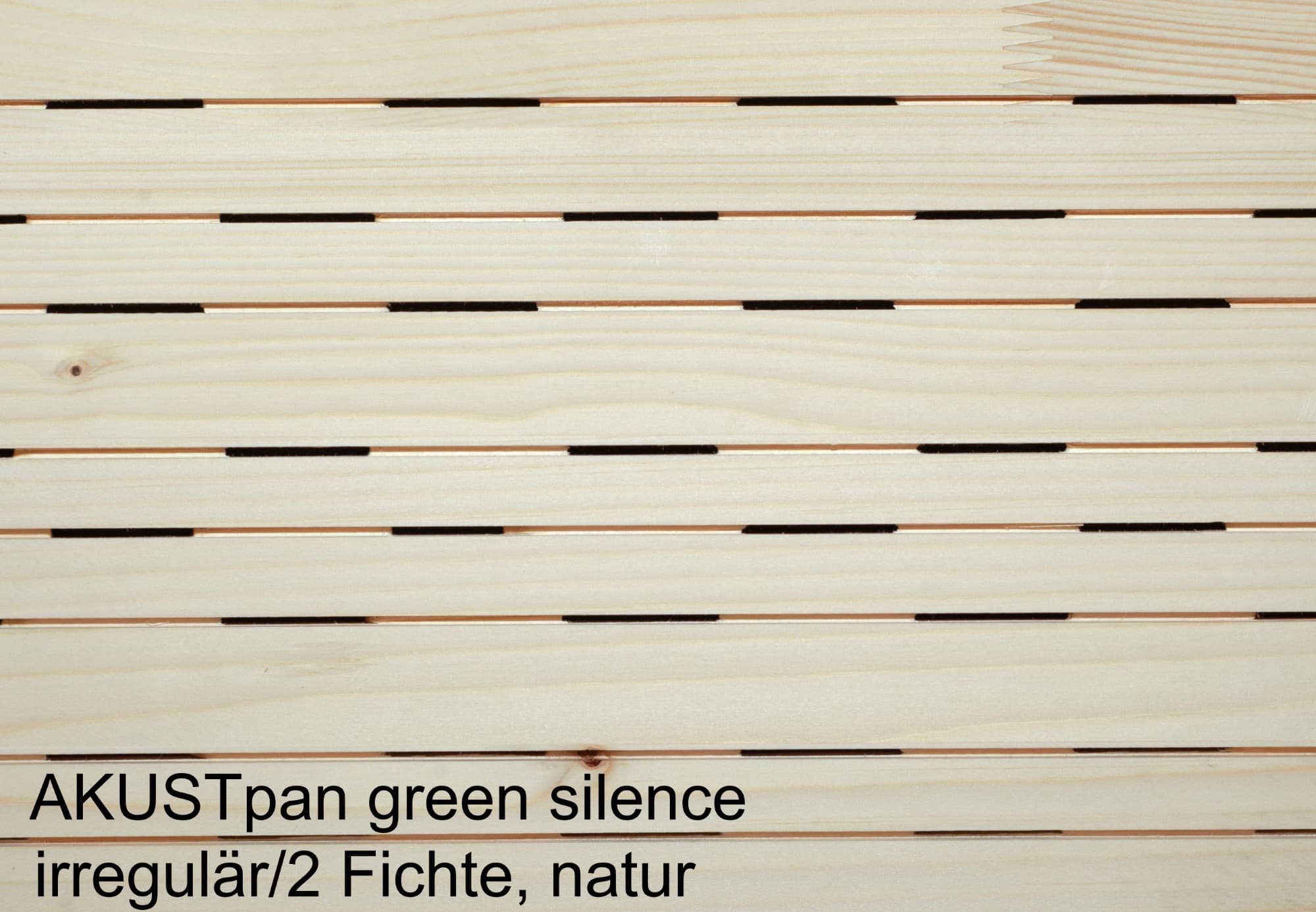

AKUSTIpan green silence is an acoustic panel made from untreated solid spruce, produced as an 18 mm glued lamella with a stable finger-jointed bond. The spruce comes from sustainable forestry, the wood remains low-emission and this is documented by an emissions test to DE-UZ 38. The face is slotted at 2, 3 or 4 mm, the back carries openings and is optionally fitted with acoustic fleece. The panel is offered on a 16 mm grid (2940 x 160 x 18 mm) and a 32 mm grid (2940 x 192 x 18 mm), on request with irregular slotting to minimise the moiré effect. The edges are formed as a tongue-and-groove joint, producing a seamless continuous look; the surface can be left sanded raw, oiled, waxed or lacquered with water-based paints. Cuts, cut-outs and beam integrations can be carried out directly on site, which also makes the panel suitable for work on existing buildings. Acoustically, the panel only works through the interplay of the slotting on the face, the openings on the back and the build-up behind it: slot width and build-up depth determine in which frequency range sound is absorbed, and can be adjusted at no extra cost through the slot spacing. Sound absorption is determined in the reverberation room per EN ISO 354 and rated per EN ISO 11654; for design work the full third-octave curve matters alongside the weighted single-number rating, and not the individual figure alone.

Technical data

Material: Untreated solid spruce from sustainable forestry; 0.7 in glued lamella with finger-jointed bond; surface sanded raw, oiled, waxed or lacquered with water-based paints; low-emission to DE-UZ 38 (01/2013)

Up to fire class: B2 per DIN 4102 / DIN EN 13501-1

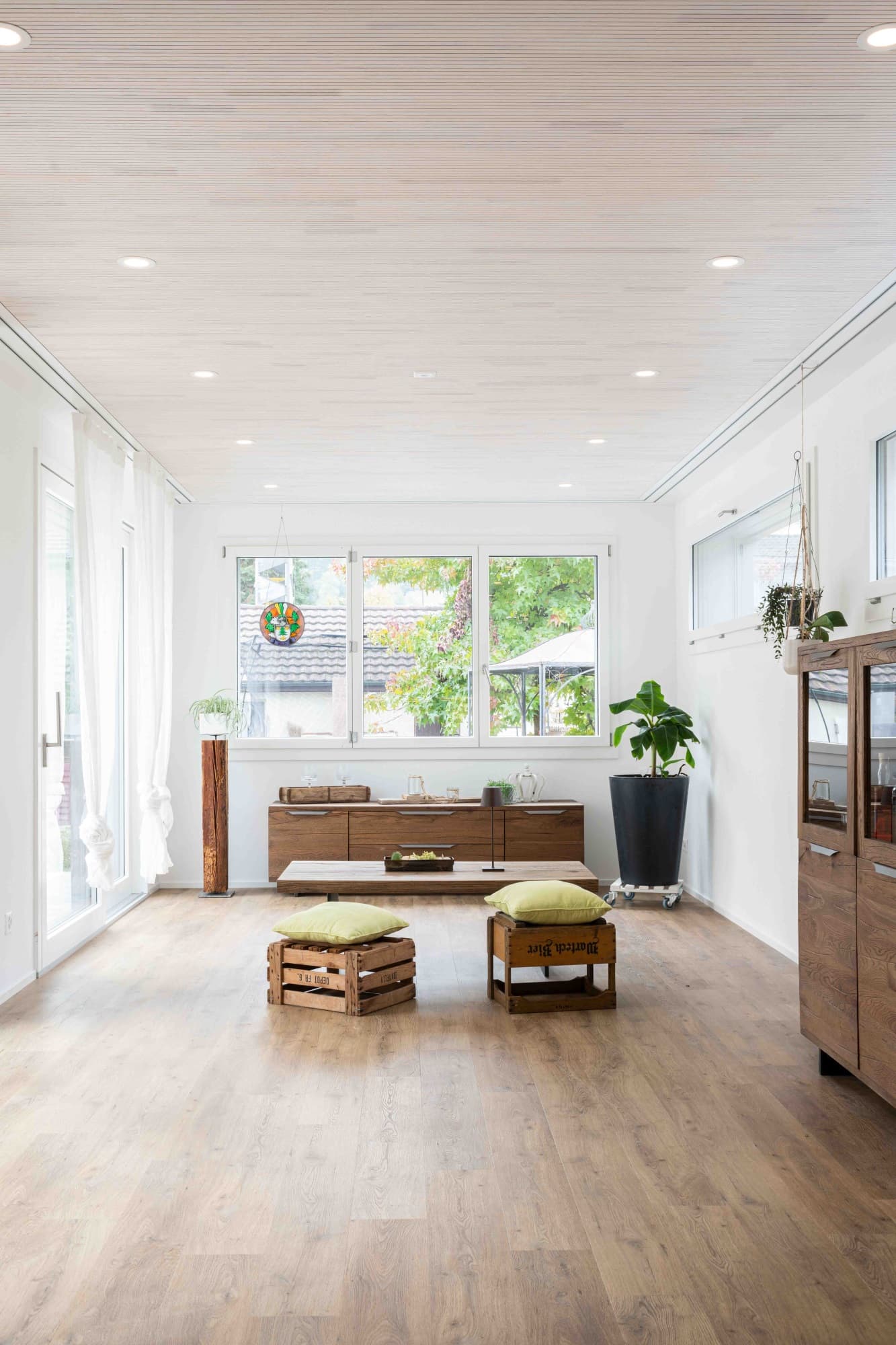

Application: Wall and ceiling cladding in rooms with demands on a healthy indoor climate, such as kindergartens and schools; conversions and refurbishments in older buildings

Measurement data

Sound absorption

Reverberation chamber (ASTM C423 / ISO 354)· 28 variants

Choose the look

Choose the slot pattern · web / slot width in mm

NRC

0.75

Frequency values

α_p per octave band

f (Hz)	125	250	500	1k	2k	4k
α_p	0.55	0.70	1.00	0.80	0.65	0.55

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

Compare	Gap / cavity	Value
	h=2.8 in · 0.9 in air gap	NRC0.75
	h=3.9 in · 2 in air gap	NRC0.80
	h=7.9 in · 6 in air gap	NRC0.75
	h=2 in · 0.1 in air gap	NRC0.75

Test report: 1939-003-21

NRC: 0.75 (derived from ISO 354 lab data)

Institute: SG-Bauakustik, Institute for Acoustic Product Optimisation

Measurement date: 2021-09-01

Perforation: 13/3

Measured values as a table (28 measurements)

AKUSTIpan green silence Acoustic Panel: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-up	NRC	100 Hz	125 Hz	160 Hz	200 Hz	250 Hz	315 Hz	400 Hz	500 Hz	630 Hz	800 Hz	1000 Hz	1250 Hz	1600 Hz	2000 Hz	2500 Hz	3150 Hz	4000 Hz	5000 Hz
12/4 · h=50 mm · 2 mm air gap	0.75	0.39	0.40	0.57	0.48	0.58	0.73	0.85	0.99	0.99	0.96	0.89	0.82	0.73	0.61	0.60	0.56	0.61	0.57
12/4 · h=70 mm · 22 mm air gap	0.80	0.53	0.58	0.60	0.63	0.69	0.92	0.99	1.15	0.93	0.89	0.80	0.75	0.72	0.61	0.64	0.65	0.61	0.57
12/4 · h=100 mm · 52 mm air gap	0.80	0.60	0.64	0.77	0.87	0.79	0.94	1.08	0.96	0.94	0.85	0.79	0.73	0.62	0.68	0.65	0.60	0.63	0.60
12/4 · h=200 mm · 152 mm air gap	0.75	1.05	0.85	0.97	0.95	0.86	0.83	0.89	0.86	0.78	0.68	0.60	0.74	0.72	0.71	0.64	0.63	0.62	0.54
13/3 · h=50 mm · 2 mm air gap	0.75	0.47	0.49	0.50	0.44	0.61	0.78	0.91	1.00	0.99	0.93	0.79	0.75	0.67	0.57	0.56	0.57	0.57	0.55
13/3 · h=70 mm · 22 mm air gap	0.75	0.48	0.60	0.60	0.62	0.69	0.84	1.05	1.00	1.03	0.90	0.76	0.75	0.67	0.63	0.58	0.60	0.58	0.54
13/3 · h=100 mm · 52 mm air gap	0.80	0.54	0.70	0.81	0.89	0.96	0.98	1.07	0.95	0.91	0.87	0.72	0.68	0.61	0.62	0.60	0.61	0.57	0.60
13/3 · h=200 mm · 152 mm air gap	0.75	0.99	0.75	0.94	1.05	0.86	0.98	0.81	0.86	0.84	0.66	0.61	0.75	0.67	0.65	0.61	0.58	0.59	0.57
14/2 · h=50 mm · 2 mm air gap	0.75	0.49	0.51	0.46	0.52	0.72	0.81	0.98	1.09	0.95	0.86	0.76	0.71	0.60	0.49	0.46	0.47	0.46	0.40
14/2 · h=70 mm · 22 mm air gap	0.75	0.58	0.62	0.57	0.63	0.74	0.86	0.93	1.06	0.92	0.85	0.73	0.65	0.57	0.55	0.49	0.46	0.45	0.39
14/2 · h=100 mm · 52 mm air gap	0.75	0.55	0.60	0.90	0.83	0.85	0.98	1.05	1.00	0.94	0.71	0.68	0.63	0.57	0.51	0.51	0.50	0.46	0.46
14/2 · h=200 mm · 152 mm air gap	0.70	1.06	0.88	1.00	1.09	0.90	0.86	0.85	0.84	0.73	0.65	0.61	0.64	0.57	0.53	0.48	0.52	0.48	0.44
28/4 · h=50 mm · 2 mm air gap	0.65	0.59	0.55	0.60	0.60	0.58	0.71	0.88	0.93	0.69	0.70	0.60	0.52	0.44	0.41	0.35	0.37	0.36	0.39
28/4 · h=70 mm · 22 mm air gap	0.60	0.61	0.63	0.67	0.66	0.63	0.73	0.80	0.82	0.72	0.56	0.52	0.54	0.48	0.41	0.39	0.38	0.40	0.35
28/4 · h=100 mm · 52 mm air gap	0.60	0.64	0.69	0.91	0.84	0.79	0.76	0.79	0.75	0.66	0.59	0.50	0.48	0.43	0.39	0.41	0.42	0.42	0.41
28/4 · h=200 mm · 152 mm air gap	0.55	1.03	0.92	0.97	0.81	0.64	0.65	0.67	0.61	0.51	0.55	0.45	0.46	0.46	0.44	0.41	0.38	0.41	0.37
29/3 · h=50 mm · 2 mm air gap	0.60	0.46	0.50	0.64	0.52	0.58	0.66	0.83	0.88	0.71	0.69	0.53	0.51	0.42	0.39	0.35	0.34	0.38	0.38
29/3 · h=70 mm · 22 mm air gap	0.55	0.60	0.68	0.64	0.65	0.61	0.79	0.87	0.76	0.71	0.61	0.51	0.47	0.47	0.38	0.35	0.37	0.39	0.35
29/3 · h=100 mm · 52 mm air gap	0.60	0.68	0.71	0.87	0.78	0.83	0.80	0.74	0.72	0.66	0.56	0.49	0.48	0.43	0.38	0.38	0.40	0.40	0.40
29/3 · h=200 mm · 152 mm air gap	0.55	0.94	0.86	0.83	0.79	0.74	0.77	0.73	0.66	0.61	0.47	0.48	0.44	0.44	0.41	0.37	0.40	0.36	0.33
30/2 · h=50 mm · 2 mm air gap	0.55	0.47	0.51	0.61	0.55	0.67	0.82	0.73	0.75	0.63	0.61	0.50	0.47	0.39	0.31	0.31	0.31	0.33	0.32
30/2 · h=70 mm · 22 mm air gap	0.55	0.64	0.77	0.67	0.77	0.65	0.71	0.81	0.79	0.61	0.52	0.48	0.43	0.36	0.35	0.33	0.33	0.30	0.26
30/2 · h=100 mm · 52 mm air gap	0.55	0.66	0.64	0.78	0.89	0.73	0.78	0.70	0.69	0.61	0.47	0.46	0.43	0.39	0.36	0.35	0.33	0.31	0.27
30/2 · h=200 mm · 152 mm air gap	0.50	1.02	0.81	0.85	0.77	0.65	0.58	0.62	0.64	0.53	0.46	0.41	0.41	0.38	0.36	0.31	0.34	0.31	0.25
irreg/2 · h=50 mm · 2 mm air gap	0.65	0.50	0.52	0.57	0.56	0.63	0.76	0.87	0.93	0.91	0.87	0.65	0.62	0.55	0.48	0.47	0.43	0.39	0.39
irreg/2 · h=70 mm · 22 mm air gap	0.65	0.63	0.59	0.66	0.70	0.67	0.75	0.85	0.95	0.81	0.70	0.55	0.58	0.53	0.46	0.43	0.50	0.40	0.41
irreg/2 · h=100 mm · 52 mm air gap	0.70	0.55	0.69	0.75	0.78	0.85	0.85	0.86	0.79	0.82	0.69	0.58	0.52	0.52	0.49	0.49	0.46	0.39	0.40
irreg/2 · h=200 mm · 152 mm air gap	0.65	1.12	0.77	0.91	0.87	0.79	0.77	0.80	0.76	0.66	0.54	0.52	0.53	0.51	0.48	0.48	0.44	0.43	0.38

Measured values as a table (28 measurements)
