Manufacturer

BVS Akustik

BVS Akustik GmbH & Co. KG from Verl (East Westphalia) has been active in the furniture industry since 1990 and produces custom acoustic panels with CNC saws, purpose-built drilling lines and an in-house laser system. Almost all board materials are processed: solid wood, veneered, composite and decor boards, each cut, edge-finished and lacquered to the customer's specification. The range covers drilled (AKUSTIbohr), micro-perforated (AKUSTIpur), slotted (AKUSTIpan) and sound-absorbing partition elements (AKUSTItrenn), each in numerous hole patterns and build-up depths. The elements are available in fire classes B1 and B2 and, for sports halls, with certified ball-impact resistance. References include Princeton University, NYU and the Emser Therme.

All products by this manufacturer Manufacturer website

Documents

Brochure Processing guideline Datasheet (measurement results)Certificate (formaldehyde-free, NAF)FSC-Certificate (GFA-COC-005281, bis 30.06.2031)

Test report on request

AKUSTIpan Acoustic Panel

Name: AKUSTIpan Acoustic Panel
Brand: BVS Akustik

AKUSTIpan

WallCeiling

Description

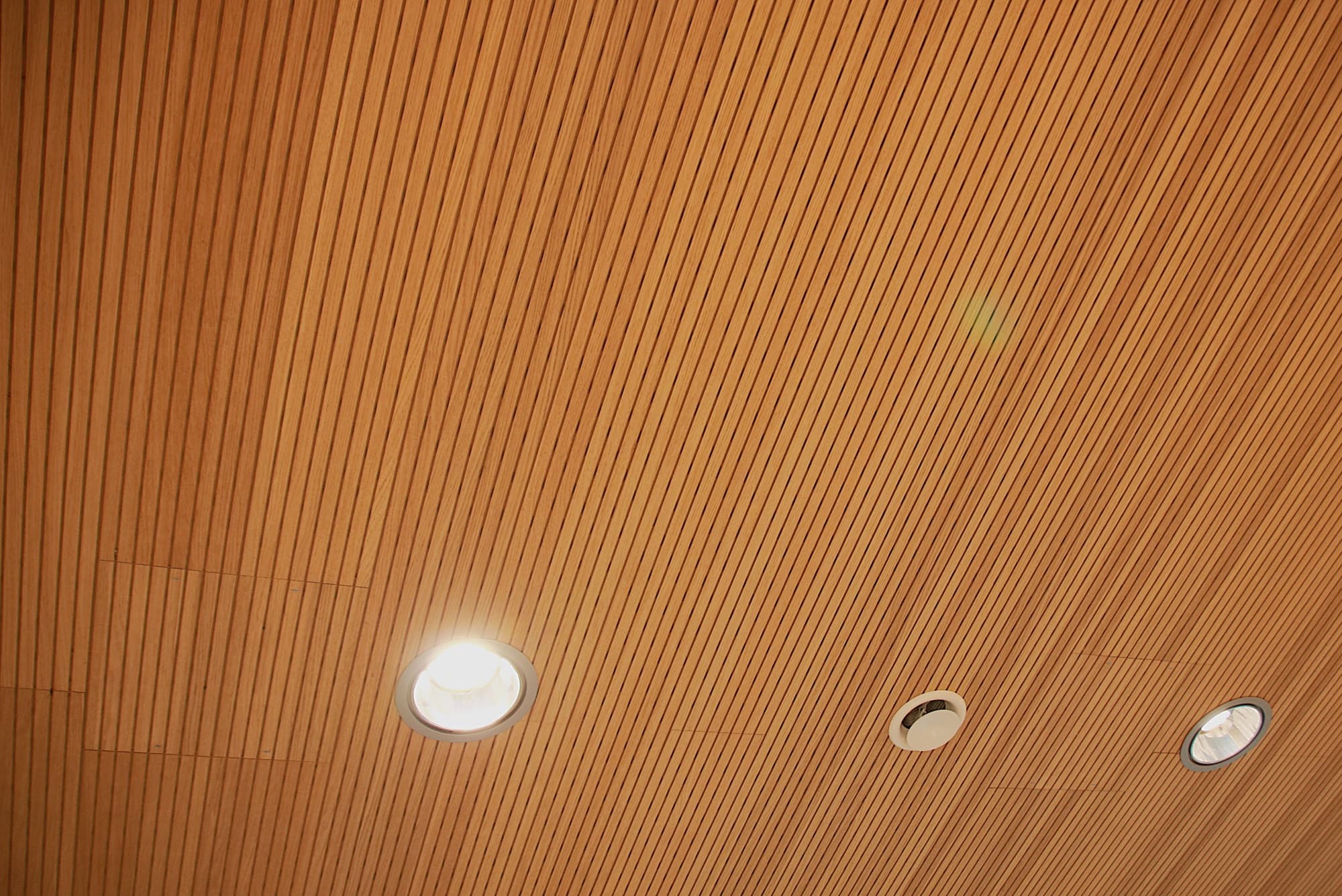

AKUSTIpan is the slotted acoustic panel from BVS: a panel milled on the back whose face carries a fine slotting, produced in fine solid woods, melamine-resin coated surfaces and in RAL and NCS colours. The panels are 2050 to 4080 mm long and 128, 160 or 192 mm wide and are slotted on a 16 mm or 32 mm grid, with an irregular slotting that minimises the moiré effect. The acoustic behaviour can be adjusted at no extra cost through the spacing and width of the slots, and the back can optionally be fitted with acoustic fleece. The VB version shows a continuous line pattern with concealed slotting, and tongue-and-groove installation produces a seamless, continuous look. Cuts, cut-outs and beam integrations are possible on site, and the material is low-emission to NAF. Acoustically, the panel only works through the interplay of the slotting with the build-up behind it, made up of optional acoustic fleece and a cavity, which converts incident sound energy into heat within a defined frequency range. The absorption coefficient is determined in the reverberation room per EN ISO 354 and rated per EN ISO 11654; for design work the full third-octave curve matters alongside the single-number rating, not the individual figure on its own.

Technical data

Material: Solid-wood or board-based panel; surfaces in fine solid woods, melamine-resin coated and in RAL and NCS colours

Up to fire class: A2, B1 and B2 per DIN 4102 / DIN EN 13501-1

Application: Wall and ceiling cladding, also in existing and historic buildings; precise cuts and beam integrations

Measurement data

Sound absorption

Reverberation chamber (ASTM C423 / ISO 354)· 9 variants

Choose perforation

NRC

0.85

Frequency values

α_p per octave band

f (Hz)	125	250	500	1k	2k	4k
α_p	0.40	0.70	0.80	0.85	0.95	0.65

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

Test report: 12648

NRC: 0.85 (derived from ISO 354 lab data)

Institute: Swisscom (Schweiz) AG, Test Laboratory STS 121

Measurement date: 2008-05-06

Application: 0.6 in material thickness, acoustic fleece, 1.2 in insulation, 5.7 in air gap

Distance: h=7.5 in · 5.7 in air gap

Perforation: 13/3 VB

Measured values as a table (9 measurements)

AKUSTIpan Acoustic Panel: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-up	NRC	100 Hz	125 Hz	160 Hz	200 Hz	250 Hz	315 Hz	400 Hz	500 Hz	630 Hz	800 Hz	1000 Hz	1250 Hz	1600 Hz	2000 Hz	2500 Hz	3150 Hz	4000 Hz	5000 Hz
13/3 VB · h=190 mm · 144 mm air gap · 16 mm material thickness, acoustic fleece, 30 mm insulation, 144 mm air gap	0.85	0.30	0.42	0.48	0.69	0.69	0.74	0.78	0.83	0.81	0.81	0.84	0.86	0.90	0.96	0.95	0.80	0.70	0.51
13/3 VB (K) · h=190 mm · with 30 mm insulation · 16 mm material thickness, acoustic fleece, 30 mm insulation, 144 mm air gap	0.80	0.32	0.46	0.59	0.71	0.70	0.74	0.79	0.85	0.82	0.77	0.82	0.85	0.86	0.81	0.75	0.61	0.50	0.46
14/2 VB · h=190 mm · 144 mm air gap · 16 mm material thickness, acoustic fleece, 30 mm insulation, 144 mm air gap	0.85	0.30	0.43	0.52	0.75	0.73	0.78	0.82	0.83	0.81	0.81	0.83	0.87	0.94	0.93	0.82	0.64	0.56	0.45
20/4 VB · h=190 mm · 144 mm air gap · 16 mm material thickness, acoustic fleece, 30 mm insulation, 144 mm air gap	0.65	0.32	0.45	0.53	0.59	0.58	0.60	0.60	0.65	0.63	0.61	0.63	0.65	0.69	0.68	0.64	0.55	0.45	0.42
28/4 VB · h=190 mm · 144 mm air gap · 16 mm material thickness, acoustic fleece, 30 mm insulation, 144 mm air gap	0.55	0.29	0.43	0.48	0.49	0.48	0.48	0.52	0.53	0.53	0.51	0.55	0.60	0.63	0.61	0.60	0.52	0.41	0.38
29/3 · h=190 mm · 144 mm air gap · 16 mm material thickness, acoustic fleece, 30 mm insulation, 144 mm air gap	0.40	0.33	0.43	0.47	0.44	0.42	0.40	0.41	0.38	0.38	0.37	0.39	0.42	0.43	0.44	0.48	0.50	0.45	0.42
30/2 · h=190 mm · 144 mm air gap · 16 mm material thickness, acoustic fleece, 30 mm insulation, 144 mm air gap	0.40	0.32	0.43	0.48	0.45	0.43	0.41	0.43	0.41	0.40	0.39	0.41	0.42	0.44	0.44	0.46	0.47	0.43	0.37
5/3 VB (R13/3) · h=190 mm · with 30 mm insulation · 16 mm material thickness, acoustic fleece, 30 mm insulation, 144 mm air gap	0.65	0.33	0.49	0.55	0.61	0.60	0.60	0.65	0.67	0.66	0.64	0.66	0.70	0.72	0.72	0.77	0.77	0.80	0.69
6/2 VB (R13/3) · h=190 mm · with 30 mm insulation · 16 mm material thickness, acoustic fleece, 30 mm insulation, 144 mm air gap	0.80	0.31	0.46	0.56	0.70	0.68	0.72	0.78	0.83	0.82	0.78	0.82	0.86	0.87	0.79	0.74	0.61	0.50	0.51

Measured values as a table (9 measurements)

Access frequency bands, variants and export. Create a permanent free account

Last updated: 09/08/2026
